Illumina Icon

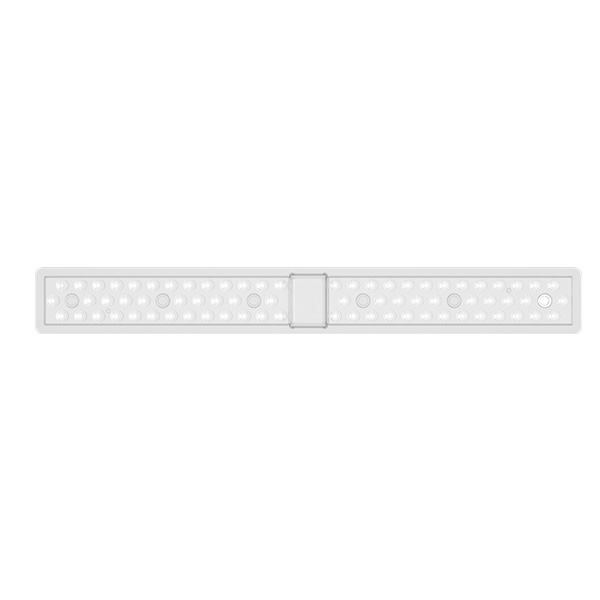

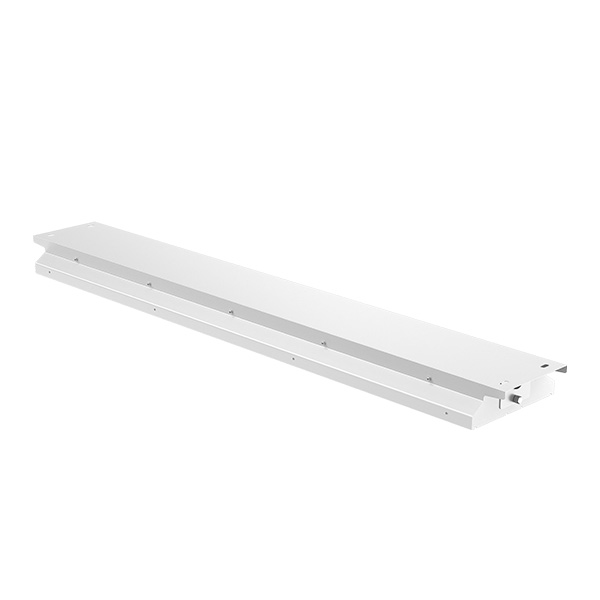

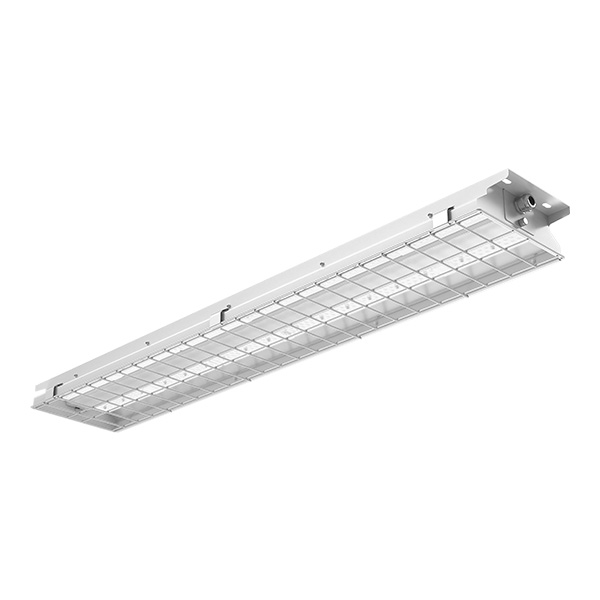

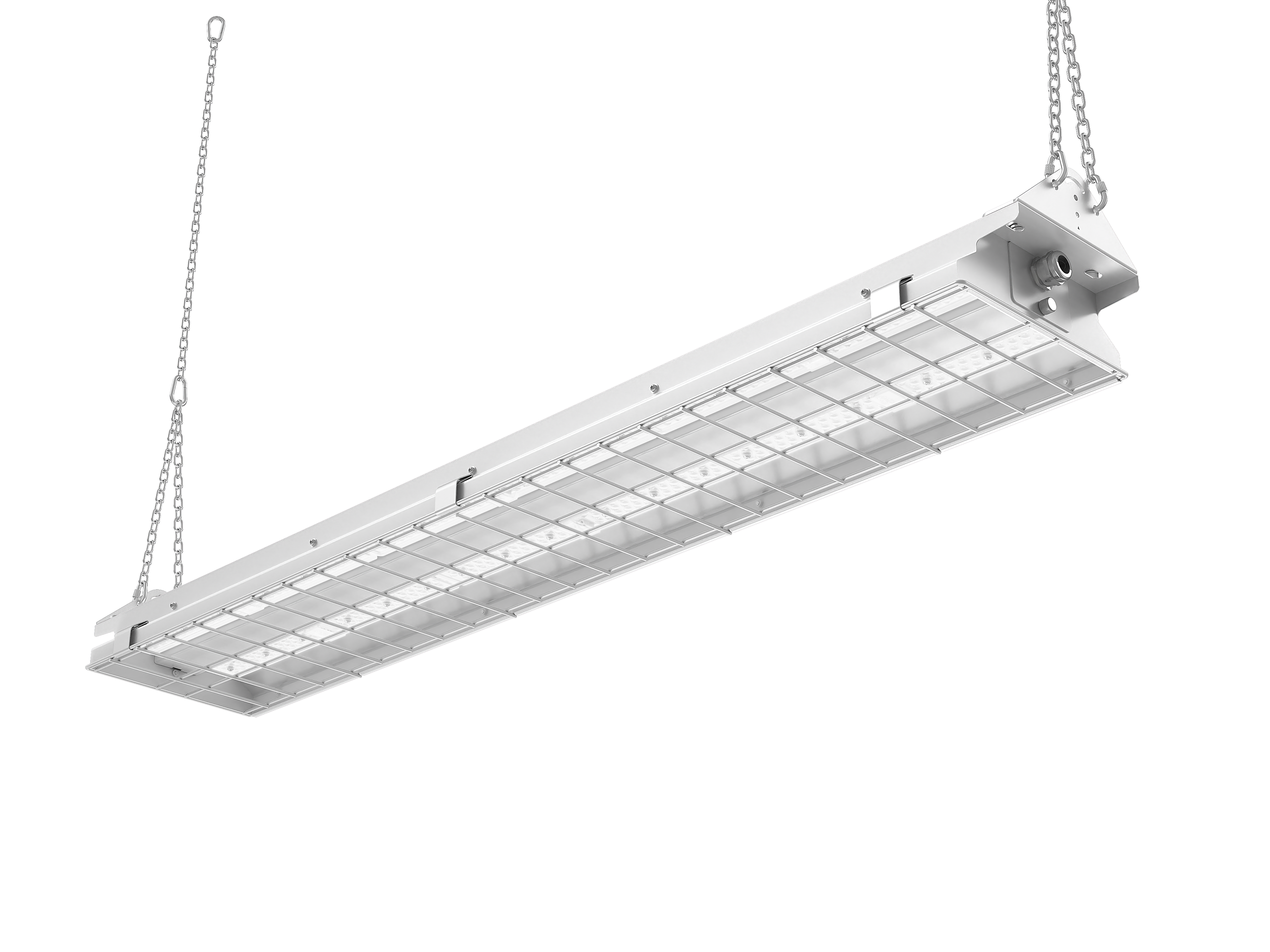

Illumina Icon 100/150/200W Asymmetric High Bay in Emergency with DALI-2 Dimming
Code:
91720
The Illumina Icon is a wattage switchable high bay which is suitable for sports lighting areas that require low glare. The Icon is DALI dimmable as standard, and is perfect for badminton courts, cricket lanes, and various other sports lighting applications.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Product Category | LED Luminaires - Not Plastic |
| Product Application | LED High Bay |
| Warranty | 7 Years (2 Years On Site) |
| Country Of Origin | CN |
| Commodity Code | 9405423990 |
| EAN | 5013588003580 |
| UNSPSC Code | 39111546 |
| Life Hours | 50000 |
| Volts (V) | 220/240 |
| Frequency (Hz) | 50/60 |
| Wattage (W) | 100/150/200 |
| Equivalent Wattage (W) | 250/400/600 |
| Energy Consumption (kWh/1000h) | 200 |
| LED Drive Current | 79mA |
| Lumen output (lm) | 15405 (100W) / 23128 (150W) / 30810 (200W) |
| Lumens per Watt (lm/W) | 154 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 4000 |
| Candelas | 20386 |
| CRI (Ra) | 80 |
| Beam Angle | 90° |
| Switching Cycles | 30000 |
| IK Rating | IK10 |
| IP Rating | IP23 |
| Operating Temperature | 0°C - +35°C |
| Width (mm) | 238 |
| Length (mm) | 1320 |
| Depth (mm) | 76 |
| UNSPSC Code | 39111546 |
| Individual Product Weight (kg) | 8.6 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 9.9 |
| Outer Box Weight (kg) | 9.9 |
| Outer Box Height (mm) | 1390 |
| Outer Box Width (mm) | 260 |
| Outer Box Depth (mm) | 110 |
| Outer Box Volume | 0.039754 |
