Lamp

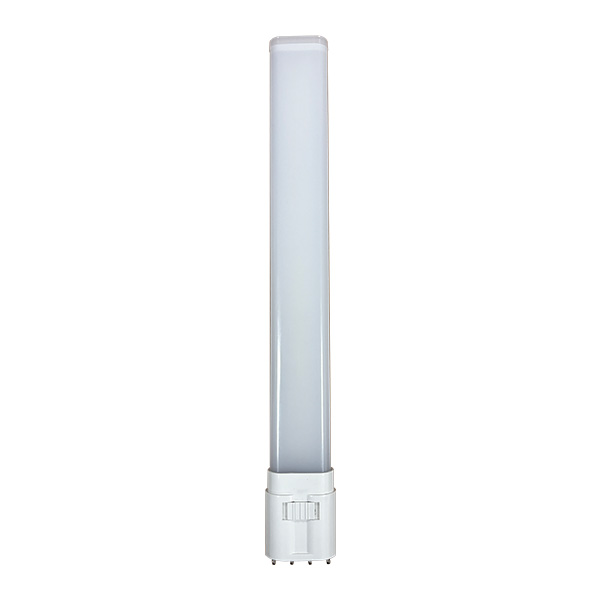

LED 10W CCT Thermoplastic BLL 4 Pin Bypass (Eq 18w + 24w)
Code:
71026
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Our LED Thermoplastic BL Lamps provide the energy saving benefits of LED without the need to change fittings.
Specification
| Commodity Code | 8539520000 |
| Country Of Origin | CN |
| EAN | 5063695000125 |
| UNSPSC Code | 39101628 |
| Product Category | Amenity Lamps |
| Product Application | BL Lamp |
| Warranty | 5 Years |
| Volts (V) | 220/240 |
| Cap | 2G11 |
| Life Hours | 30000 |
| Beam Angle | 120° |
| Energy Rating | F |
| CRI (Ra) | 80 |
| Switching Cycles | 15000 |
| Frequency (Hz) | 50 |
| LED Drive Current | 80mA |
| Energy Consumption (kWh/1000h) | 10 |
| IP Rating | IP20 |
| Height (mm) | 24 |
| Width (mm) | 44 |
| Length (mm) | 327 |
| Lumens per Watt (lm/W) | 100 |
| Operating Temperature | -20°C - +45°C |
| Wattage (W) | 10 |
| Equivalent Wattage (W) | 24 |
| Colour Temperature (K) | 3000/4000/6000 |
| Candelas | 120 |
| IK Rating | IK03 |
| Lumen Maintenance Ratio | 80 |
| Lumen output (lm) | 1000 |
| Individual Product Weight (kg) | 0.103 |
| UNSPSC Code | 39101628 |
| Height (mm) | 24 |
| Width (mm) | 44 |
| Length (mm) | 327 |
| Minimum Order Quantity | 1 |
| Individual Product Weight (kg) | 0.103 |
