Fitting
Ultra 20/40W Wattage Switchable LED CCT Integrated 4ft Batten
Code:
10278
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
The Ultra LED CCT Batten is a versatile general-purpose fitting. The Ultra CCT takes the reliable features of the standard Ultra Batten and combines these with the additional benefits of selectable colour temperature and selectable wattage. Overall, the Ultra CCT Batten provides a stock friendly solution for wholesalers and contractors alike.
Specification
| Country Of Origin | CN |
| Commodity Code | 9405423990 |
| EAN | 5013588102788 |
| UNSPSC Code | 39111544 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | LED Batten |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| CRI (Ra) | 85 |
| Switching Cycles | 25000 |
| Frequency (Hz) | 50/60 |
| IP Rating | IP20 |
| Individual Product Weight (kg) | 1.42 |

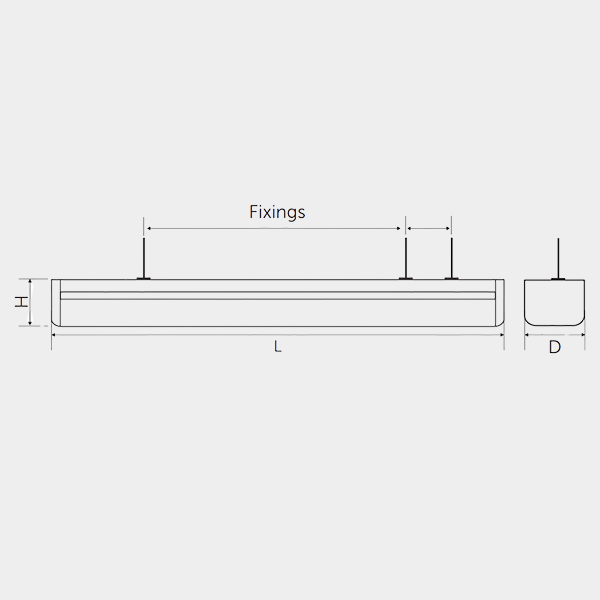

| Height (mm) | 82 |
| Length (mm) | 1230 |
| Lumens per Watt (lm/W) | 159-183 |
| Depth (mm) | 69 |
| Energy Consumption (kWh/1000h) | 40 |
| Wattage (W) | 20/40 |
| Colour Temperature (K) | 3000/4000/6000 |
| Candelas | 690-1580 |
| IK Rating | IK08 |
| Lumen output (lm) | 20W = 3418 (3000K) / 3664 (4000K) / 3478 (6000K) - 40W = 6341 (3000K) - 7047 (4000K) - 6468 (6000K) |
| Lumen Maintenance Ratio | L80 B10 |
| Individual Product Weight (kg) | 1.42 |
| Outer Box Weight (kg) | 10.68 |
| Outer Box Height (mm) | 1250 |
| Outer Box Width (mm) | 250 |
| Outer Box Depth (mm) | 210 |
| Outer Box Volume | 0.06563 |
| Outer Box Qty | 6 |
| UNSPSC Code | 39111544 |
| Height (mm) | 82 |
| Length (mm) | 1230 |
| Depth (mm) | 69 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 1.57 |
| Single box Height (mm) | 1240 |
| Single box Width (mm) | 90 |
| Single Box Depth (mm) | 80 |
| Single Box Volume | 0.00893 |
| Outer Box Barcode | 1027800000006 |
