Ultra Endure

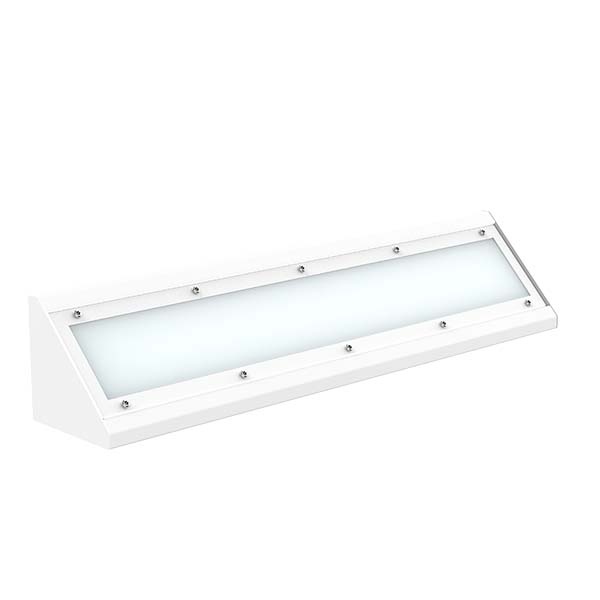

Ultra Endure 60W LED CCT Anti-Ligature 5ft White Batten Cornice with DALI Dimming
Code:
70184
The Ultra Endure LED Batten is CCT and anti-ligature, available in both Black and White. Also available in emergency and with DALI Dimming.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423100 |
| EAN | 5013588701844 |
| Country Of Origin | CN |
| UNSPSC Code | 39111544 |
| Product Category | LED Luminaires - Plastic |
| Product Application | Anti-Ligature Batten |
| Warranty | 10 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 100000 |
| Beam Angle | 100° |
| CRI (Ra) | 85 |
| Switching Cycles | 300000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 450mA |
| IP Rating | IP65 |
| Energy Consumption (kWh/1000h) | 60 |
| Operating Temperature | -30°C - +35°C |
| Lumens per Watt (lm/W) | 124-138 |
| Wattage (W) | 60 |
| Equivalent Wattage (W) | 90 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 3000/4000/6000 |
| Candelas | 2756 |
| IK Rating | IK10 |
| Lumen output (lm) | 7458 (3000K) / 8295 (4000K) / 7826 (6000K) |
| Height (mm) | 120 |
| Width (mm) | 167 |
| Length (mm) | 1500 |
| Outer Box Qty | 2 |
| UNSPSC Code | 39111544 |
| Minimum Order Quantity | 1 |
| Individual Product Weight (kg) | 7.75 |
| Single Box Weight (kg) | 8.05 |
| Single box Height (mm) | 212 |
| Single box Width (mm) | 148 |
| Single Box Depth (mm) | 1596 |
| Single Box Volume | 0.050076096 |
| Outer Box Barcode | 7018400000002 |
| Outer Box Weight (kg) | 15 |
| Outer Box Height (mm) | 300 |
| Outer Box Width (mm) | 227 |
| Outer Box Depth (mm) | 1610 |
| Outer Box Volume | 0.109641 |
