Arial Converter

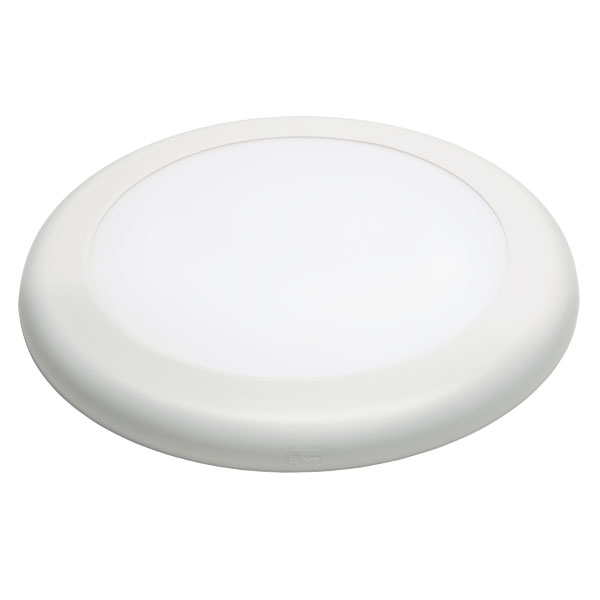

Arial 16/20/22W LED CCT Converter with Sensor - 120-260mm
Code:
06842
The Arial LED Converter is an unrivalled product when it comes to versatility in the LED market.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423100 |
| EAN | 5013588068428 |
| Country Of Origin | CN |
| UNSPSC Code | 39111515 |
| Product Category | LED Luminaires - Plastic |
| Product Application | Multiple Internal Applications |
| Warranty | 5 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 120° |
| CRI (Ra) | 85 |
| Switching Cycles | 100000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 200/250/270mA |
| IP Rating | IP40 |
| Lumens per Watt (lm/W) | 136-157 |
| Energy Consumption (kWh/1000h) | 22 |
| Wattage (W) | 16/20/22 |
| Colour Temperature (K) | 3000/4000/6000 |
| Lumen output (lm) | 16W = 2296 / 2514 / 2476 - 20W = 2749 / 3096 / 2991 - 22W = 3001 / 3396 / 3258 |
| UNSPSC Code | 39111515 |
| Height (mm) | 300 |
| Diameter (mm) | 300 |
| Individual Product Weight (kg) | 0.8 |
| Outer Box Weight (kg) | 10.4 |
| Outer Box Height (mm) | 365 |
| Outer Box Width (mm) | 330 |
| Outer Box Depth (mm) | 445 |
| Outer Box Qty | 10 |
| Outer Box Volume | 0.0536 |
| Width (mm) | 300 |
| Depth (mm) | 25 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 1.04 |
| Single box Height (mm) | 42 |
| Single box Width (mm) | 345 |
| Single Box Depth (mm) | 315 |
| Single Box Volume | 0.00456435 |
| Outer Box Barcode | 0684200000010 |
