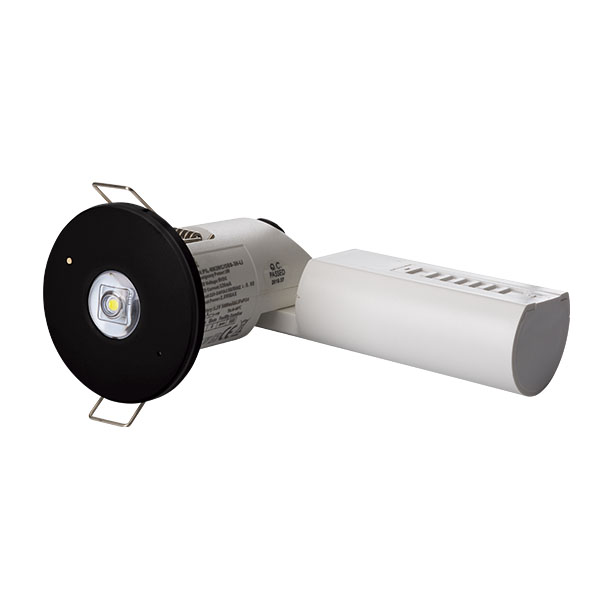

Spectrum 3W LED Emergency Black Open Area/Corridor Pilot Light - Self-Test On/Off Switch
Code:
09131
The 3W Spectrum Auto Self Test Downlights have a dual colour charge indicator and come complete with a sheathed battery pack. This IP20 rated fixture includes both Open Area and Corridor lenses which are easily interchangeable to suit the application.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 8513100000 |
| EAN | 5013588091310 |
| Country Of Origin | CN |
| Product Application | Open Area / Corridor Emergency Lighting |
| Product Category | Emergency Lighting / Luminaire with Battery |
| UNSPSC Code | 39111709 |
| Warranty | 5 Years |
| Volts (V) | 220/240 |
| Frequency (Hz) | 50/60 |
| Life Hours | 35000 |
| Energy Consumption (kWh/1000h) | 3 |
| IP Rating | IP20 |
| Lumens per Watt (lm/W) | 63 (Corridor) / 85 (Open Area) |
| Operating Temperature | 0°C - +35°C |
| LED Drive Current | 320mA |
| CRI (Ra) | 70 |
| Wattage (W) | 3 |
| Colour Temperature (K) | 6000 |
| Lumen output (lm) | 189 (Corridor) / 256 (Open Area) |
| Height (mm) | 130-175 |
| Width (mm) | 61 |
| Depth (mm) | 81-175 |
| Individual Product Weight (kg) | 0.21 |
| Outer Box Weight (kg) | 11.3 |
| Outer Box Height (mm) | 520 |
| Outer Box Width (mm) | 310 |
| Outer Box Depth (mm) | 380 |
| Outer Box Qty | 40 |
| Outer Box Volume | 0.06126 |
| Diameter (mm) | 61 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 0.26 |
| Single box Height (mm) | 90 |
| Single box Width (mm) | 145 |
| Single Box Depth (mm) | 100 |
| Single Box Volume | 0.00131 |
| Outer Box Barcode | 0913100000040 |
| UNSPSC Code | 39111709 |
