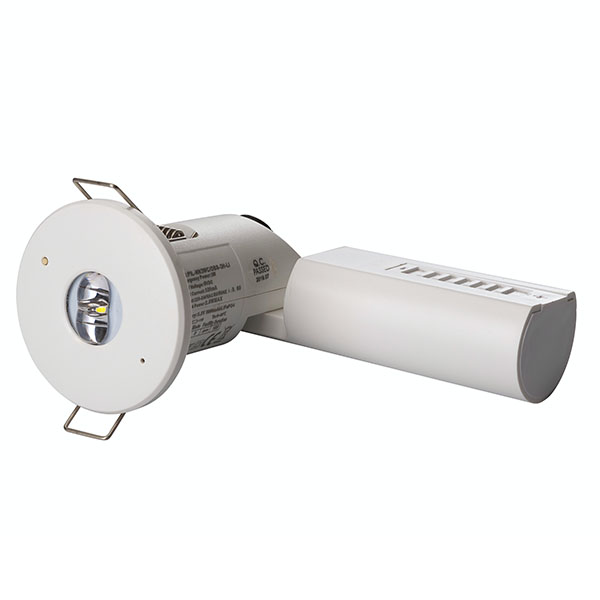

Spectrum DALI 3W LED Self-Test Emergency Open Area/Corridor Downlight - Non-Maintained
Code:
09155
The 3W Spectrum Auto Self Test Downlights have a dual colour charge indicator and come complete with a sheathed battery pack. This IP20 rated fixture includes both Open Area and Corridor lenses which are easily interchangeable to suit the application.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 8513100000 |
| EAN | 5013588003238 |
| Country Of Origin | CN |
| Product Category | Emergency Lighting / Luminaire with Battery |
| Product Application | Open Area / Corridor Emergency Lighting |
| Warranty | 5 Years |
| Volts (V) | 220/240 |
| Life Hours | 35000 |
| CRI (Ra) | 70 |
| Switching Cycles | 30000 |
| Frequency (Hz) | 50/60 |
| Energy Consumption (kWh/1000h) | 3 |
| IP Rating | IP20 |
| Lumens per Watt (lm/W) | 83 |
| Operating Temperature | 0°C - +35°C |
| Wattage (W) | 3 |
| Colour Temperature (K) | 6000 |
| Lumen output (lm) | 250 |
| Height (mm) | 130-175 |
| Width (mm) | 61 |
| Diameter (mm) | 61 |
| Individual Product Weight (kg) | 0.208 |
| Outer Box Weight (kg) | 11.8 |
| Outer Box Height (mm) | 380 |
| Outer Box Width (mm) | 310 |
| Outer Box Depth (mm) | 520 |
| Outer Box Qty | 40 |
| Outer Box Volume | 0.061256 |
| Single Box Weight (kg) | 0.28 |
| Single box Height (mm) | 90 |
| Single box Width (mm) | 100 |
| Single Box Depth (mm) | 145 |
| Single Box Volume | 0.001305 |
