Spectrum Bulkhead
Spectrum 3.3W LED IP65 Emergency Bulkhead - Maintained/Non-Maintained - Select Self-Test or Manual Emergency Mode
Code:
09040V2

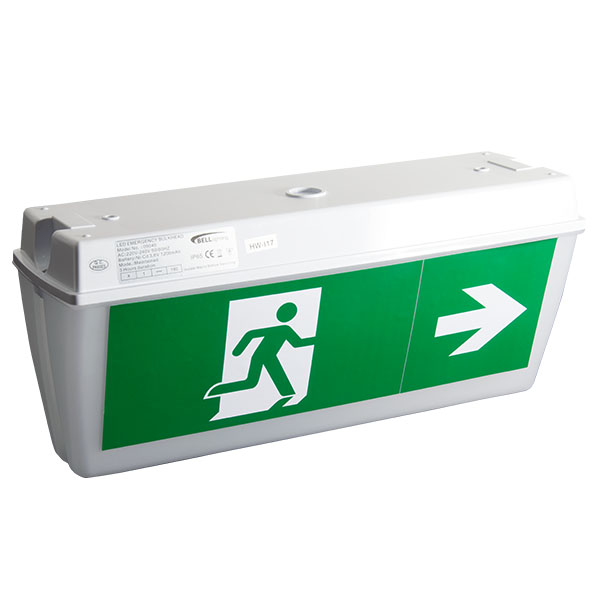

Our most popular emergency bulkhead, the 3.3W IP65 bulkhead has a low-profile design and is suitable for both internal & external use. The optional exit blade accessory transforms this Emergency Bulkhead into an IP65 Exit Blade.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 8513100000 |
| EAN | 5013588900063 |
| Country Of Origin | CN |
| Product Application | Emergency Lighting |
| Product Category | Emergency Lighting / Luminaire with Battery |
| UNSPSC Code | 39111706 |
| Warranty | 5 Years |
| Volts (V) | 220/240 |
| Life Hours | 30000 |
| Frequency (Hz) | 50/60 |
| IP Rating | IP65 |
| Beam Angle | 120° |
| CRI (Ra) | 80 |
| Switching Cycles | 15000 |
| LED Drive Current | 300mA |
| Energy Consumption (kWh/1000h) | 4 |
| Lumens per Watt (lm/W) | 57 |
| Operating Temperature | 0°C - +35°C |
| Wattage (W) | 3.3 |
| Colour Temperature (K) | 6500 |
| Candelas | 38 |
| IK Rating | IK07 |
| Lumen output (lm) | 187 |
| Individual Product Weight (kg) | 0.52 |
| Outer Box Weight (kg) | 7.7 |
| Outer Box Height (mm) | 410 |
| Outer Box Width (mm) | 375 |
| Outer Box Depth (mm) | 255 |
| Outer Box Qty | 12 |
| Outer Box Volume | 0.03921 |
| Plastic Packaging Weight (kg) | 0.01 |
| Height (mm) | 110 |
| Width (mm) | 352 |
| Depth (mm) | 60 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 0.58 |
| Single box Height (mm) | 120 |
| Single box Width (mm) | 65 |
| Single Box Depth (mm) | 358 |
| Single Box Volume | 0.00279 |
| Inner Box Barcode | 09040V2000002 |
| Outer Box Barcode | 09040V2000012 |
| UNSPSC Code | 39111706 |
Optional Accessories
Code
Product Name
Unit Price
Quantity
Price
Code
09041V2
Product Name
Recessing Kit for 3.3W Spectrum Bulkhead (09040V2)
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
