Fitting

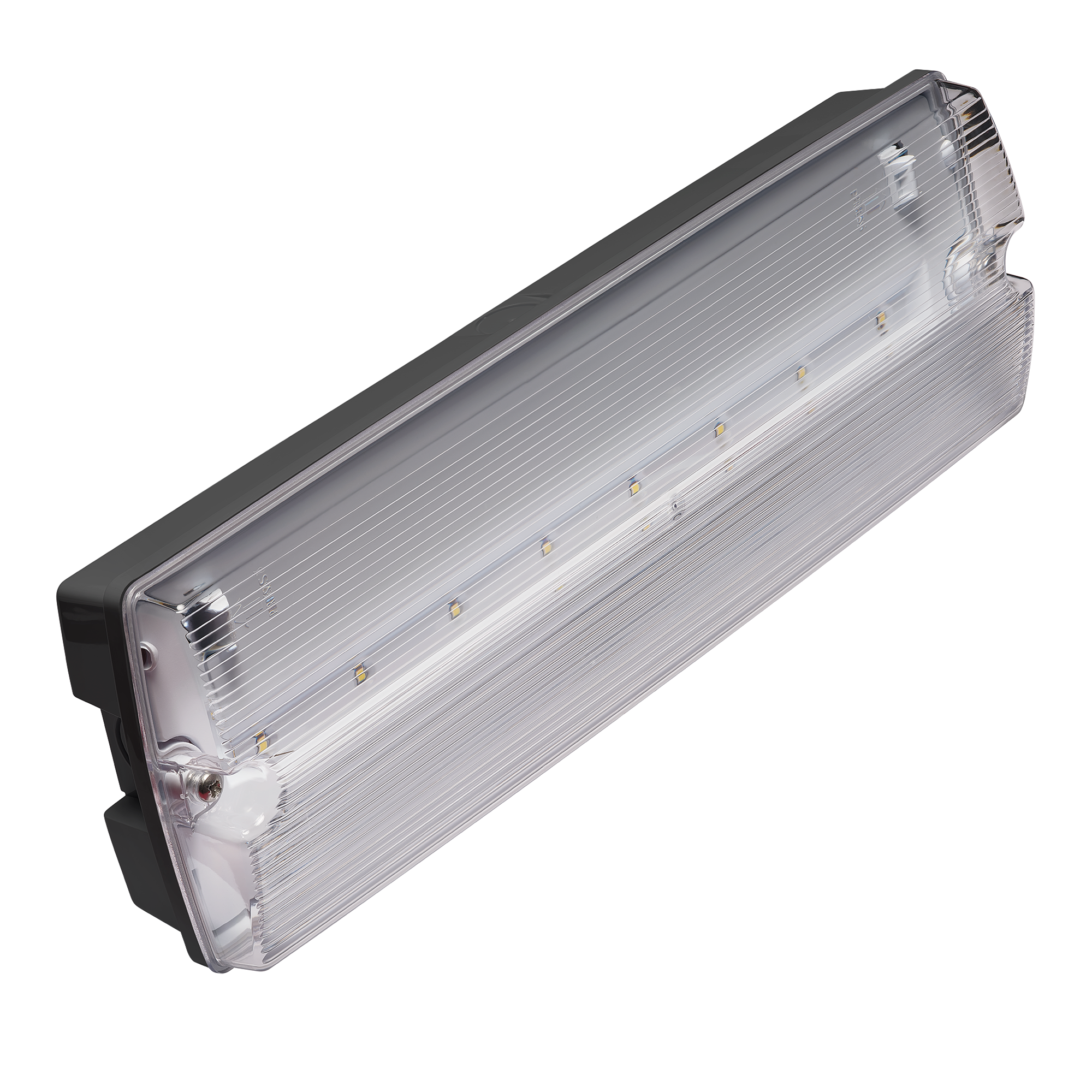

Spectrum 3.3W IP65 Emergency Bulkhead - Self-Test On/Off Switch - Black
Code:
09099
Please log in to see pricing
To view product pricing and place orders, please log in to your account.
Our most popular emergency bulkhead, the Spectrum 3.3W IP65 Bulkhead has a low-profile design and is suitable for both internal & external use.
Specification
| Product Category | Emergency Lighting / Luminaire with Battery |
| Product Application | Emergency Lighting |
| Warranty | 5 Years |
| Country Of Origin | CN |
| Commodity Code | 8513100000 |
| EAN | 5063695048585 |
| UNSPSC Code | 39111706 |
| Life Hours | 30000 |
| Volts (V) | 220/240 |
| Frequency (Hz) | 50/60 |
| Wattage (W) | 3.3 |
| Energy Consumption (kWh/1000h) | 4 |
| LED Drive Current | 300mA |
| Lumen output (lm) | 197 |
| Lumens per Watt (lm/W) | 60 |
| Colour Temperature (K) | 6500 |
| Candelas | 38 |
| CRI (Ra) | 80 |
| Beam Angle | 120° |
| Switching Cycles | 15000 |
| Height (mm) | 110 |
| Width (mm) | 352 |
| Depth (mm) | 60 |
| IK Rating | IK07 |
| IP Rating | IP65 |
| Operating Temperature | 0°C - +35°C |
| Individual Product Weight (kg) | 0.52 |
| Height (mm) | 110 |
| Width (mm) | 352 |
| Depth (mm) | 60 |
| UNSPSC Code | 39111706 |
| Individual Product Weight (kg) | 0.52 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 0.58 |
| Single box Height (mm) | 120 |
| Single box Width (mm) | 65 |
| Single Box Depth (mm) | 358 |
| Single Box Volume | 0.00279 |
| Outer Box Qty | 12 |
| Outer Box Weight (kg) | 7.7 |
| Outer Box Height (mm) | 410 |
| Outer Box Width (mm) | 375 |
| Outer Box Depth (mm) | 255 |
| Outer Box Volume | 0.03921 |
