Fitting

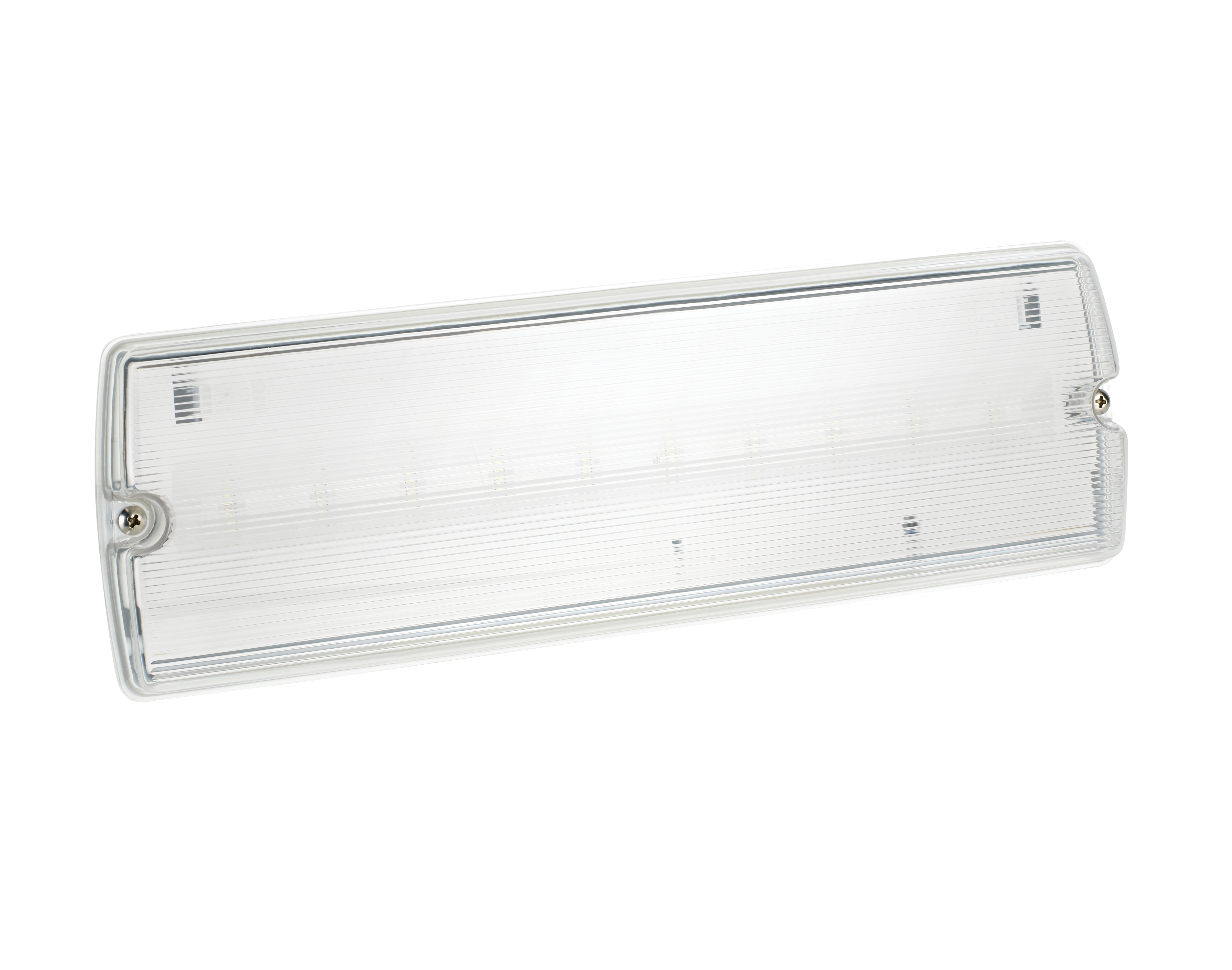

Spectrum DALI-2 3.3W IP65 Self-Test Emergency Bulkhead
Code:
09152
Please log in to see pricing
To view product pricing and place orders, please log in to your account.
Our most popular emergency bulkhead, the 3.3W IP65 bulkhead has a low-profile design and is suitable for both internal & external use. The optional exit blade accessory transforms this Emergency Bulkhead into an IP65 Exit Blade.
Specification
| Commodity Code | 8513100000 |
| EAN | 5013588003313 |
| Country Of Origin | CN |
| Product Category | Emergency Lighting / Luminaire with Battery |
| Product Application | Emergency Lighting |
| Warranty | 5 Years |
| Volts (V) | 220/240 |
| Energy Consumption (kWh/1000h) | 4 |
| IP Rating | IP65 |
| Height (mm) | 110 |
| Width (mm) | 352 |
| Depth (mm) | 60 |
| Switching Cycles | 15000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 300mA |
| Lumens per Watt (lm/W) | 57 |
| Operating Temperature | 0°C - +35°C |
| Life Hours | 30000 |
| Beam Angle | 120° |
| CRI (Ra) | 80 |
| Individual Product Weight (kg) | 0.54 |
| Wattage (W) | 3.3 |
| Colour Temperature (K) | 6000 |
| Candelas | 38 |
| IK Rating | IK07 |
| Lumen output (lm) | 187 |
| Height (mm) | 110 |
| Width (mm) | 352 |
| Depth (mm) | 60 |
| Individual Product Weight (kg) | 0.54 |
| Outer Box Weight (kg) | 7.7 |
| Outer Box Height (mm) | 410 |
| Outer Box Width (mm) | 375 |
| Outer Box Depth (mm) | 255 |
| Outer Box Qty | 12 |
| Outer Box Volume | 0.03920625 |
| Single Box Weight (kg) | 0.59 |
| Single box Height (mm) | 120 |
| Single box Width (mm) | 65 |
| Single Box Depth (mm) | 358 |
| Single Box Volume | 0.0027924 |
| Outer Box Barcode | 0915200000012 |
| Minimum Order Quantity | 1 |
