Fitting

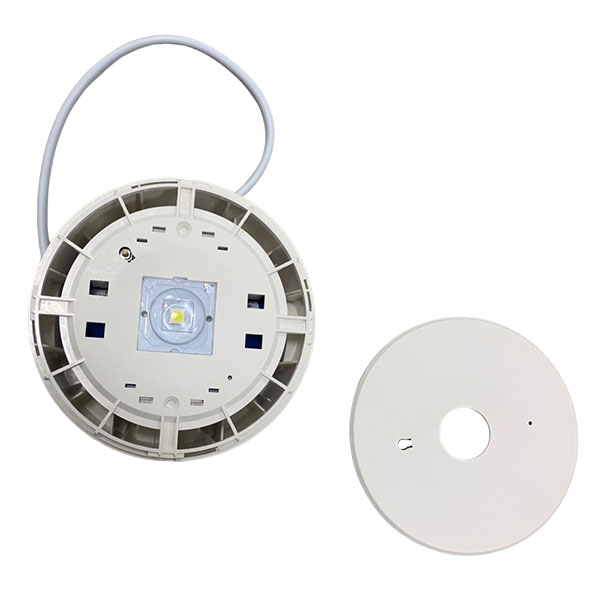

Spectrum 2W LED Emergency Open Area/Corridor Downlight - Surface/Recessed - Non-Maintained - Self-Test or Manual Emergency
Code:
09126
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
The 2W Spectrum Auto Self-Test Downlight is a 4-in-1 product, which makes it one of the most versatile in the range.
Specification
| Commodity Code | 8513100000 |
| Country Of Origin | CN |
| EAN | 5013588091266 |
| Product Application | Open Area / Corridor Emergency Lighting |
| Product Category | Emergency Lighting / Luminaire with Battery |
| UNSPSC Code | 39111709 |
| Warranty | 5 Years |
| Individual Product Weight (kg) | 0.156 |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Frequency (Hz) | 50/60 |
| IP Rating | IP20 |
| Beam Angle | 145° |
| CRI (Ra) | 70 |
| LED Drive Current | 370mA |
| Lumens per Watt (lm/W) | 86-88 |
| Energy Consumption (kWh/1000h) | 2 |
| Operating Temperature | 0°C - +35°C |
| Wattage (W) | 2 |
| Colour Temperature (K) | 6000 |
| Lumen output (lm) | 171 (Corridor) / 175 (Open Area) |
| Height (mm) | 51 |
| Diameter (mm) | 98 |
| Cut out (mm) | 80 |
| Individual Product Weight (kg) | 0.156 |
| Outer Box Weight (kg) | 12 |
| Outer Box Height (mm) | 530 |
| Outer Box Width (mm) | 320 |
| Outer Box Depth (mm) | 350 |
| Outer Box Qty | 75 |
| Outer Box Volume | 0.05936 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 0.186 |
| Single box Height (mm) | 62 |
| Single box Width (mm) | 101 |
| Single Box Depth (mm) | 101 |
| Single Box Volume | 0.00063 |
| Outer Box Barcode | 0912600000075 |
| UNSPSC Code | 39111709 |
| Height (mm) | 51 |
| Diameter (mm) | 98 |
