Spectrum Exit Blade
Spectrum 2.5W LED Emergency Surface Exit Blade Including Up Legend - Maintained - Select Self-Test or Manual Emergency Mode
Code:
09012V2
The Spectrum LED Emergency Surface Exit Blade is one of our most cost-effective emergency products. With a viewing distance of 25m, this Exit Blade is viewable on both sides to ensure safe passage in an emergency.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 8513100000 |
| EAN | 5013588900056 |
| Country Of Origin | CN |
| Product Category | Emergency Lighting / Luminaire with Battery |
| Product Application | Exit Lighting |
| UNSPSC Code | 39111706 |
| Warranty | 5 Years |
| Volts (V) | 220/240 |
| Life Hours | 25000 |
| Beam Angle | 120° |
| CRI (Ra) | 80 |
| Switching Cycles | 15000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 60mA |
| Energy Consumption (kWh/1000h) | 5 |
| IP Rating | IP20 |
| Lumens per Watt (lm/W) | 10 |
| Operating Temperature | 0°C - +35°C |
| Wattage (W) | 2.5 |
| Equivalent Wattage (W) | 2.5 |
| Colour Temperature (K) | 6500 |
| Candelas | 180 |
| IK Rating | IK06 |
| Lumen output (lm) | 25 |
| Individual Product Weight (kg) | 0.83 |
| Outer Box Weight (kg) | 10.8 |
| Outer Box Height (mm) | 265 |
| Outer Box Width (mm) | 350 |
| Outer Box Depth (mm) | 470 |
| Outer Box Qty | 10 |
| Outer Box Volume | 0.04359 |
| Plastic Packaging Weight (kg) | 0.01 |

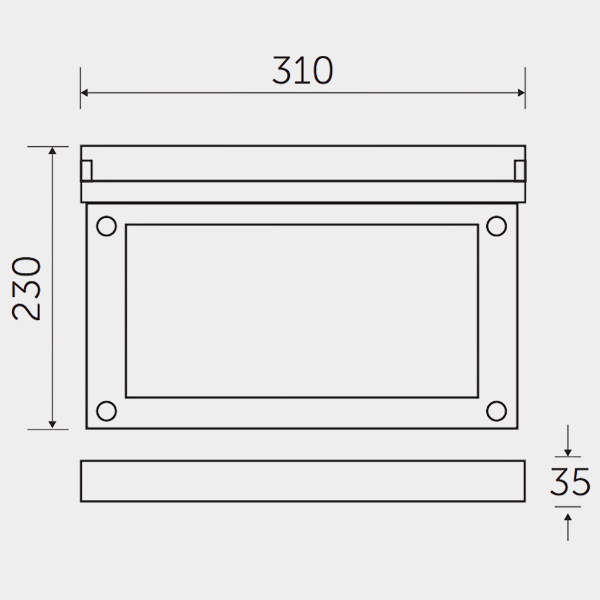

| Height (mm) | 230 |
| Width (mm) | 310 |
| Depth (mm) | 35 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 0.93 |
| Single box Height (mm) | 45 |
| Single box Width (mm) | 335 |
| Single Box Depth (mm) | 245 |
| Single Box Volume | 0.00369 |
| Outer Box Barcode | 09012V2000010 |
| UNSPSC Code | 39111706 |
Optional Accessories
Code
Product Name
Unit Price
Quantity
Price
Code
09013
Product Name
New Left & Right Legend for the Spectrum 2.5W LED Emergency Exit Blade
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
Code
09014
Product Name
New Down Legend for the Spectrum 2.5W LED Emergency Exit Blade
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
Code
09048
Product Name
Recessing Kit for the Spectrum Emergency Surface Exit Blade
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
