Spectrum Exit Sign
Spectrum 4W LED Emergency Hinged Exit Box - Includes Up Legend - Select Self-Test or Manual Emergency Mode
Code:
09083V2
Our Spectrum LED Emergency Hinged Exit Box is one of our most popular emergency products. The tried and tested robust design and polycarbonate construction makes this exit box ideal for all commercial and industrial environments.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 8513100000 |
| EAN | 5013588900070 |
| Country Of Origin | CN |
| Product Category | Emergency Lighting / Luminaire with Battery |
| Product Application | Exit Lighting |
| UNSPSC Code | 39111544 |
| Warranty | 5 Years |
| Volts (V) | 220/240 |
| Life Hours | 30000 |
| Frequency (Hz) | 50/60 |
| Energy Consumption (kWh/1000h) | 4 |
| IP Rating | IP20 |
| Beam Angle | 140° |
| CRI (Ra) | 80 |
| Switching Cycles | 15000 |
| Lumens per Watt (lm/W) | 9 |
| Operating Temperature | 0°C - +35°C |
| Wattage (W) | 4 |
| Colour Temperature (K) | 6500 |
| Candelas | 180 |
| IK Rating | IK06 |
| Lumen output (lm) | 37 |
| Individual Product Weight (kg) | 0.7 |
| Outer Box Weight (kg) | 8.5 |
| Outer Box Height (mm) | 530 |
| Outer Box Width (mm) | 420 |
| Outer Box Depth (mm) | 220 |
| Outer Box Qty | 10 |
| Outer Box Volume | 0.04897 |
| Plastic Packaging Weight (kg) | 0.01 |

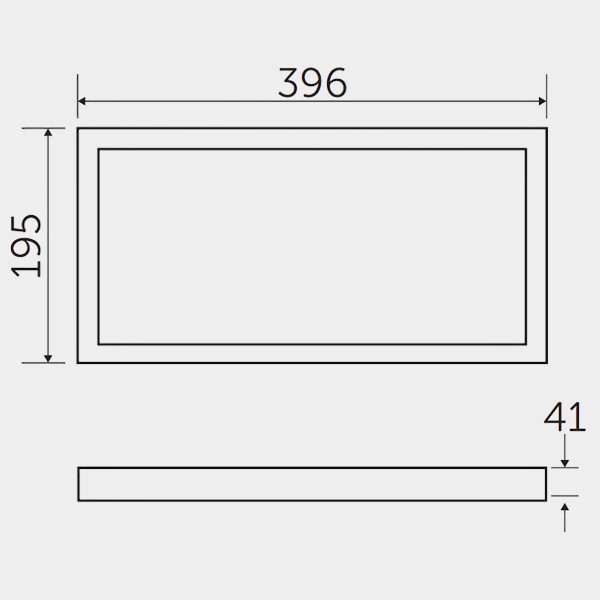

| Height (mm) | 195 |
| Width (mm) | 396 |
| Depth (mm) | 41 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 0.78 |
| Single box Height (mm) | 50 |
| Single box Width (mm) | 202 |
| Single Box Depth (mm) | 405 |
| Single Box Volume | 0.00409 |
| Outer Box Barcode | 09083V2000010 |
| UNSPSC Code | 39111544 |
Optional Accessories
Code
Product Name
Unit Price
Quantity
Price
Code
09085
Product Name
New (ISO) Reversible Left & Right Legend
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
Code
09087
Product Name
New (ISO) Down Legend
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
