Spectrum Exit Sign

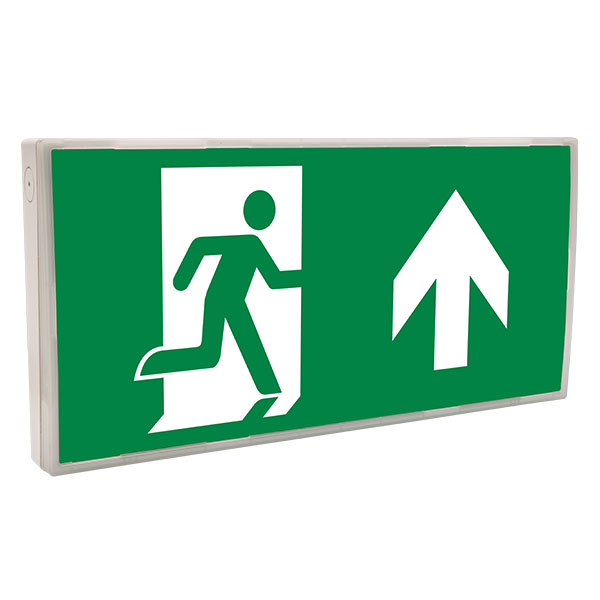

Spectrum DALI 4W LED Self-Test Emergency Exit Box with Up Legend
Code:
09150
Our Spectrum LED Emergency Hinged Exit Box is one of our most popular emergency products. The tried and tested robust design and polycarbonate construction makes this exit box ideal for all commercial and industrial environments.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 8513100000 |
| EAN | 5013588003290 |
| Country Of Origin | CN |
| Product Category | Emergency Lighting / Luminaire with Battery |
| Product Application | Exit Lighting |
| Warranty | 5 Years |
| Volts (V) | 220/240 |
| Life Hours | 30000 |
| Beam Angle | 140° |
| CRI (Ra) | 80 |
| Switching Cycles | 15000 |
| Frequency (Hz) | 50/60 |
| Energy Consumption (kWh/1000h) | 4 |
| IP Rating | IP20 |
| Lumens per Watt (lm/W) | 9 |
| Operating Temperature | 0°C - +35°C |
| Wattage (W) | 4 |
| Colour Temperature (K) | 6500 |
| Candelas | 180 |
| IK Rating | IK06 |
| Lumen output (lm) | 37 |
| Height (mm) | 195 |
| Width (mm) | 396 |
| Depth (mm) | 41 |
| Individual Product Weight (kg) | 0.7 |
| Outer Box Weight (kg) | 8.5 |
| Outer Box Height (mm) | 530 |
| Outer Box Width (mm) | 420 |
| Outer Box Depth (mm) | 220 |
| Outer Box Qty | 10 |
| Outer Box Volume | 0.04897 |
| Plastic Packaging Weight (kg) | 0.01 |
| Single Box Weight (kg) | 0.78 |
| Single box Height (mm) | 50 |
| Single box Width (mm) | 202 |
| Single Box Depth (mm) | 405 |
| Single Box Volume | 0.00409 |
| Outer Box Barcode | 0915000000010 |
