Spectrum High Power Bulkhead
Spectrum 7W LED IP65 High Powered Emergency Bulkead - Non-Maintained - Select Self-Test or Manual Emergency Mode
Code:
09094V2
The Spectrum Pro LED High Power Emergency Bulkhead is designed specifically for areas that require a substantial light output. this high-powered emergency bulkhead is suitable for all commercial and industrial installations.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 8513100000 |
| EAN | 5013588900094 |
| Country Of Origin | CN |
| Product Application | Emergency Lighting |
| Product Category | Emergency Lighting / Luminaire with Battery |
| UNSPSC Code | 39111709 |
| Warranty | 5 Years |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Frequency (Hz) | 50/60 |
| IP Rating | IP65 |
| Lumens per Watt (lm/W) | 156 |
| Beam Angle | 140° |
| CRI (Ra) | 80 |
| Switching Cycles | 15000 |
| LED Drive Current | 45mA |
| Operating Temperature | 0°C - +35°C |
| Energy Consumption (kWh/1000h) | 7 |
| Wattage (W) | 7 |
| Equivalent Wattage (W) | 12 |
| Colour Temperature (K) | 6500 |
| Candelas | 340 |
| IK Rating | IK07 |
| Lumen output (lm) | 1094 |
| Individual Product Weight (kg) | 1.2 |
| Outer Box Weight (kg) | 8 |
| Outer Box Height (mm) | 445 |
| Outer Box Width (mm) | 365 |
| Outer Box Depth (mm) | 195 |
| Outer Box Qty | 5 |
| Outer Box Volume | 0.03167 |
| Plastic Packaging Weight (kg) | 0.01 |

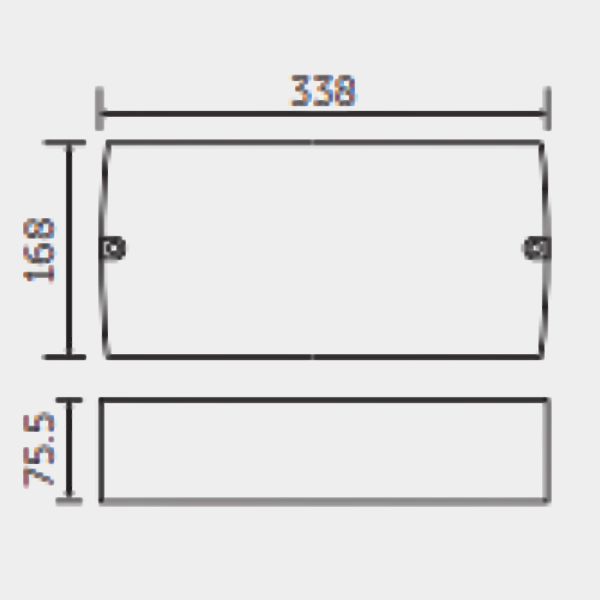

| Height (mm) | 168 |
| Width (mm) | 338 |
| Depth (mm) | 76 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 1.35 |
| Single box Height (mm) | 177 |
| Single box Width (mm) | 84 |
| Single Box Depth (mm) | 347 |
| Single Box Volume | 0.00516 |
| Outer Box Barcode | 09094V2000005 |
| UNSPSC Code | 39111709 |
