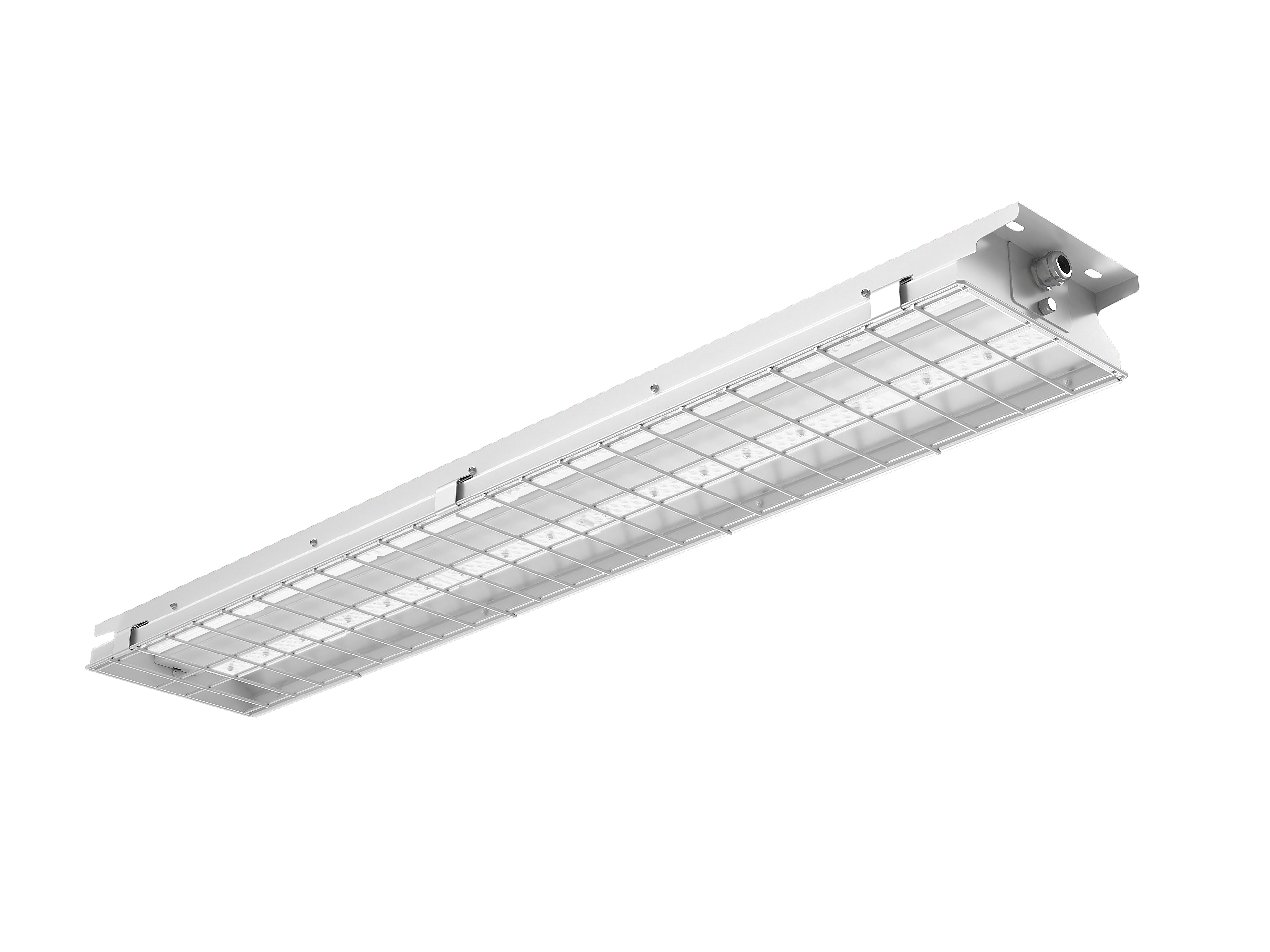

Illumina Icon Wattage Switchable Linear LED High Bay

Illumina Icon 100/150/200W Asymmetric High Bay with DALI Dimming

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
70361
Technical Specification
Volts (V)
220/240
The Illumina Icon is a wattage switchable high bay which is suitable for sports lighting areas that require low glare. The Icon is DALI dimmable as standard, and is perfect for badminton courts, cricket lanes, and various other sports lighting applications.
Download Specification
Full Specification
Downloads
Name
Illumina Icon 100/150/200W Asymmetric High Bay with DALI Dimming
Commodity Code
9405423990
EAN
5013588001968
Volts (V)
220/240
Life Hours
50000
CRI (Ra)
80
Switching Cycles
30000
Frequency (Hz)
50/60
LED Drive Current
79mA
Energy Consumption (kWh/1000h)
200
Dimming Option
DALI
Electric Class
Class I
Lumens per Watt (lm/W)
153-154
Guarantee
7 Years
Height (mm)
1320
Width (mm)
238
Depth (mm)
76
Surge Protection
6kV
Individual Product Weight (kg)
8.6
IP Rating
IP23
Wattage (W)
100/150/200
Equivalent Wattage (W)
500
Colour Temperature (K)
4000
Candelas
20386
IK Rating
IK10
Minimum Order Quantity
1
Single Box Weight (kg)
9.9
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
15397 (100W) / 22950 (150W) / 30593 (200W)
Dimmable
Yes
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
