Illumina Calor V2

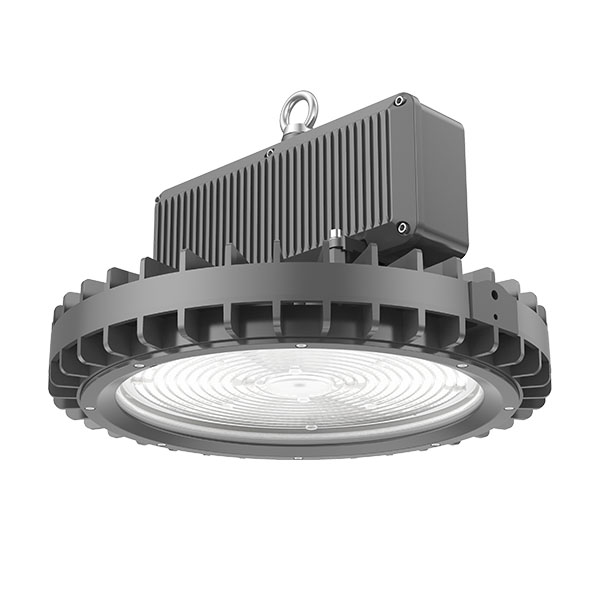

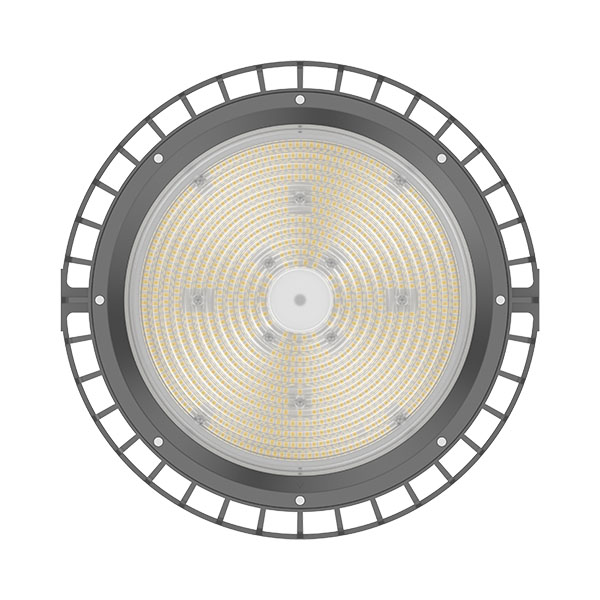

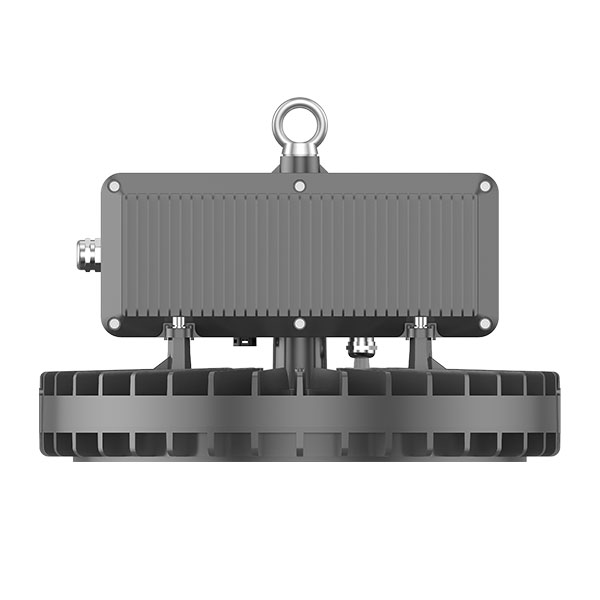

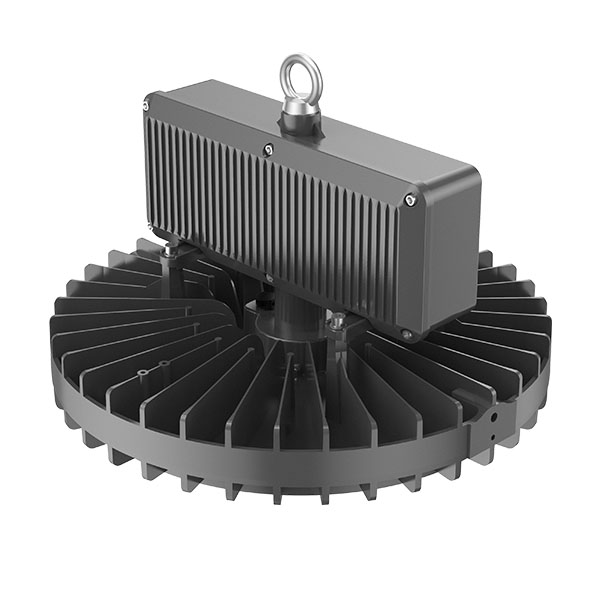

Illumina Calor V2 100/150/200W CCT High Temperature High Bay - 90° Lens
Code:
70351
The Illumina Calor offers a sleek design coupled with high performance. With a high ambient temperature rating of 65°C, this fitting is perfect for applications where extreme high temperatures are encountered eg; foundries, steelworks and bottling plants.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423990 |
| Country Of Origin | CN |
| EAN | 5013588703510 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | High Temperature Areas |
| UNSPSC Code | 39111546 |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 90° |
| CRI (Ra) | 80 |
| Switching Cycles | 30000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 85mA-126mA |
| Energy Consumption (kWh/1000h) | 200 |
| IP Rating | IP66 |
| Operating Temperature | -30°C to +65°C |
| Lumens per Watt (lm/W) | 150-154 |
| Wattage (W) | 100/150/200 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 4000/5000 |
| Candelas | 10457-10759 (at 200W) |
| IK Rating | IK08 |
| Lumen output (lm) | 100W = 15384 (4000K) - 14981 (5000K) / 150W = 23076 (4000K) - 22472 (5000K) / 200W = 30768 (4000K) - 29962 (5000K) |
| Height (mm) | 262 |
| Diameter (mm) | 380 |
| Individual Product Weight (kg) | 6.6 |
| Outer Box Weight (kg) | 8.8 |
| Outer Box Height (mm) | 490 |
| Outer Box Width (mm) | 450 |
| Outer Box Depth (mm) | 260 |
| Outer Box Volume | 0.05733 |
| Minimum Order Quantity | 1 |
| UNSPSC Code | 39111546 |
