Illumina Elite 2
Illumina Elite 2 100/120/140/160/180/200W LED 120° High Bay - 4000K
Code:
70370

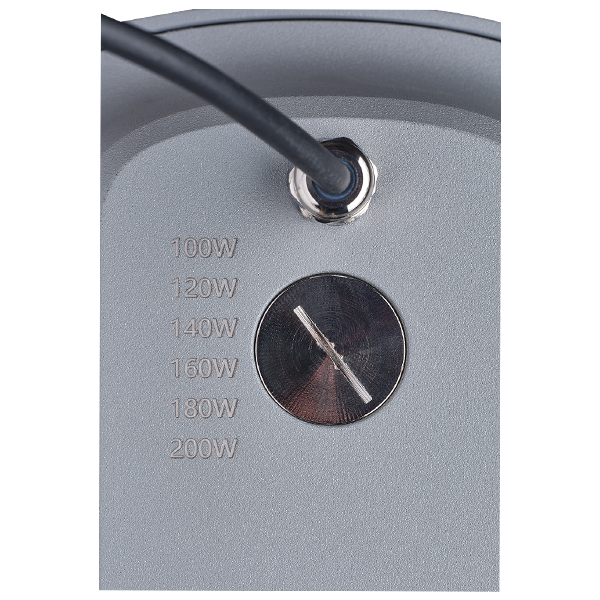

The Illumina Elite 2 is a high efficiency LED High Bay, offering wattage switchability on standard versions.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Product Category | LED Luminaires - Not Plastic |
| Product Application | Warehouse Lighting |
| Commodity Code | 9405423990 |
| Country Of Origin | CN |
| EAN | 5063695003522 |
| UNSPSC Code | 39111544 |
| Warranty | 7 Years |
| Volts (V) | 220/240 |
| Frequency (Hz) | 50/60 |
| Energy Consumption (kWh/1000h) | 200 |
| Lumens per Watt (lm/W) | 200 |
| CRI (Ra) | 80 |
| Life Hours | 100000 |
| LED Drive Current | 667mA |
| IP Rating | IP66 |
| Operating Temperature | -40°C - 50°C |
| Wattage (W) | 100/120/140/160/180/200 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 4000 |
| Candelas | 21904 (at 200W) |
| IK Rating | IK08 |
| Lumen output (lm) | 20000/24000/28000/32000/36000/40000 |
| UNSPSC Code | 39111544 |
| Height (mm) | 390 |
| Width (mm) | 390 |
| Depth (mm) | 91 |
| Diameter (mm) | 390 |
| Individual Product Weight (kg) | 2.7 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 3.7 |
| Single box Height (mm) | 175 |
| Single box Width (mm) | 410 |
| Single Box Depth (mm) | 410 |
| Single Box Volume | 0.0294175 |
