Illumina Icon

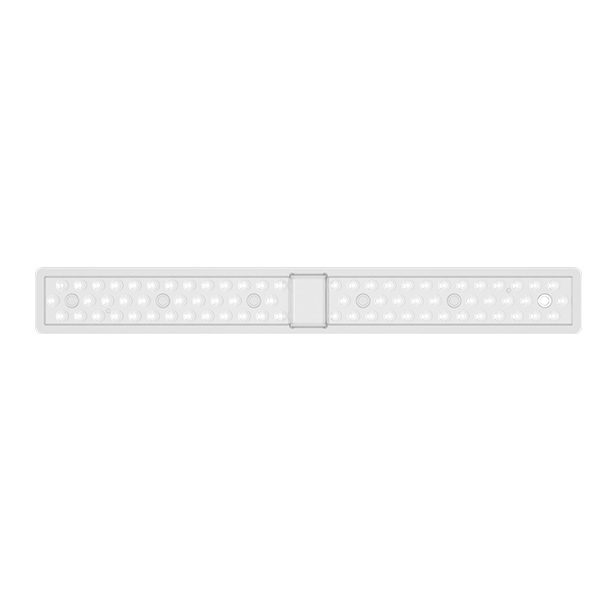

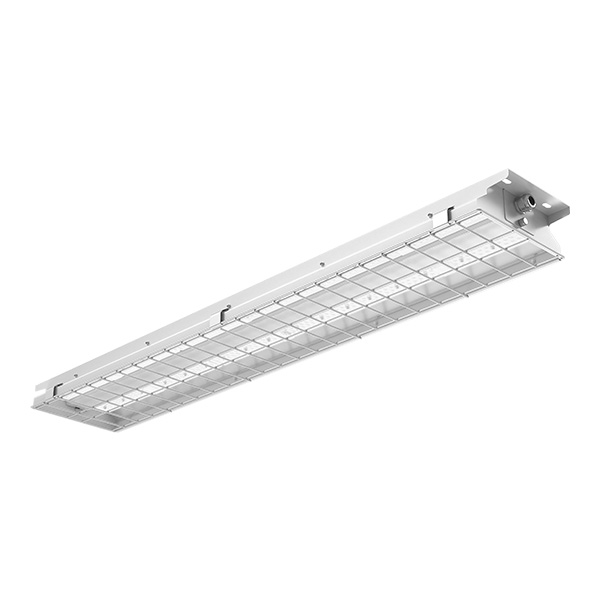

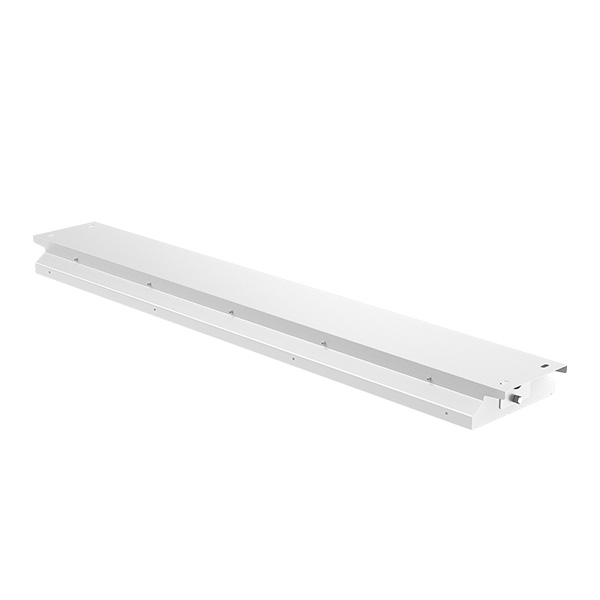

Illumina Icon 100/150/200W Symmetric High Bay with DALI Dimming
Code:
70360
The Illumina Icon is a wattage switchable high bay which is suitable for sports lighting areas that require low glare. The Icon is DALI dimmable as standard, and is perfect for badminton courts, cricket lanes, and various other sports lighting applications.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| EAN | 5013588001951 |
| Country Of Origin | CN |
| Commodity Code | 9405423990 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | LED High Bay |
| UNSPSC Code | 39111546 |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 90° |
| CRI (Ra) | 80 |
| Switching Cycles | 30000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 79mA |
| Energy Consumption (kWh/1000h) | 200 |
| Lumens per Watt (lm/W) | 154 |
| IP Rating | IP23 |
| Wattage (W) | 100/150/200 |
| Equivalent Wattage (W) | 500 |
| Colour Temperature (K) | 4000 |
| Candelas | 20386 |
| IK Rating | IK10 |
| Lumen output (lm) | 15405 (100W) / 23128 (150W) / 30810 (200W) |
| Height (mm) | 1320 |
| Width (mm) | 238 |
| Depth (mm) | 76 |
| Individual Product Weight (kg) | 8.6 |
| Outer Box Weight (kg) | 9.9 |
| Outer Box Height (mm) | 1390 |
| Outer Box Width (mm) | 260 |
| Outer Box Depth (mm) | 110 |
| Outer Box Volume | 0.039754 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 9.9 |
| UNSPSC Code | 39111546 |
Optional Accessories
Code
Product Name
Unit Price
Quantity
Price
Code
70363
Product Name
Adjustable Bracket for the Illumina Icon LED High Bay
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
Code
70364
Product Name
Suspension Kit for the Illumina Icon LED High Bay
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
