Illumina Linear UGR

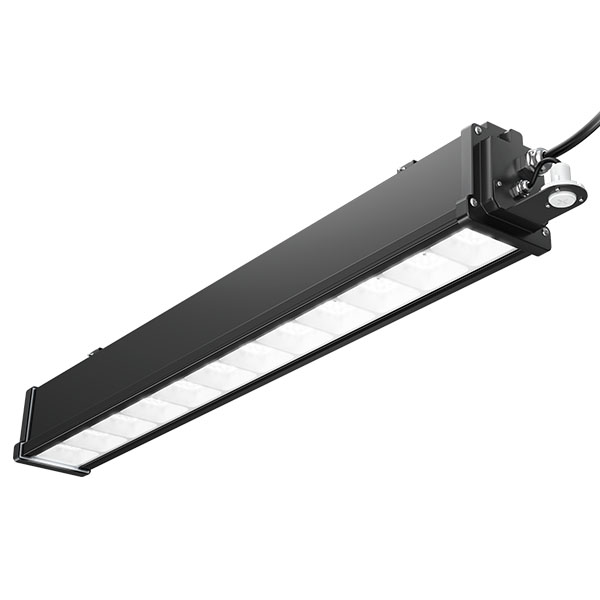

Illumina Linear 200W LED UGR Symmetric High Bay - 4000K
Code:
11319
The Illumina Linear offers a sleek design coupled with high performance. Perfect for high ceiling warehouses, industrial facilities, exhibition centres, shopping malls, sports halls & stadiums.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423990 |
| EAN | 5013588113197 |
| Country Of Origin | CN |
| UNSPSC Code | 39111546 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | Commercial / Industrial / Warehousing |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 110/264 |
| Life Hours | 50000 |
| CRI (Ra) | 85 |
| Switching Cycles | 100000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 124mA |
| Energy Consumption (kWh/1000h) | 200 |
| IP Rating | IP65 |
| Lumens per Watt (lm/W) | 137 |
| Wattage (W) | 200 |
| Equivalent Wattage (W) | 400 |
| Colour Temperature (K) | 4000 |
| IK Rating | IK08 |
| Lumen output (lm) | 27388 |
| UNSPSC Code | 39111546 |
| Height (mm) | 113 |
| Width (mm) | 118 |
| Length (mm) | 1293 |
| Individual Product Weight (kg) | 5.76 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 6.5 |
| Single box Height (mm) | 1350 |
| Single box Width (mm) | 130 |
| Single Box Depth (mm) | 155 |
| Single Box Volume | 0.0272025 |
Optional Accessories
Code
Product Name
Unit Price
Quantity
Price
Code
11324
Product Name
2m Suspension Kit for the Illumina Linear UGR LED High Bay
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
Code
11325
Product Name
Adjustable 60° Bracket for the Illumina Linear UGR LED High Bay
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
