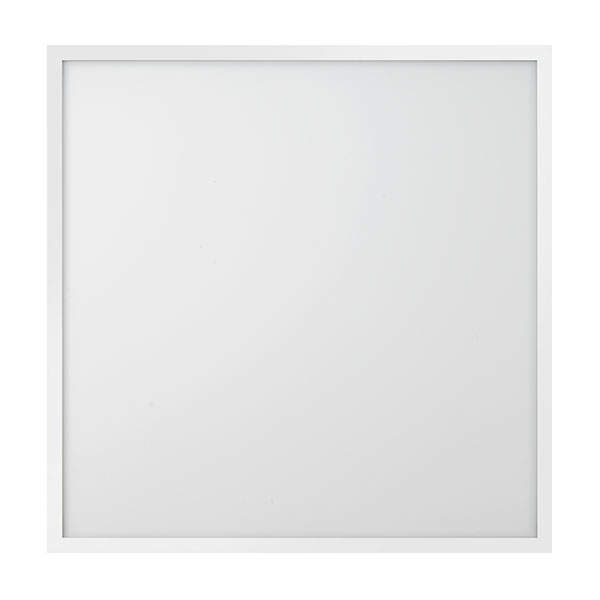

Arial Plus Backlit 25W LED UGR<19 600x600 White Panel - 25mm Deep - 4000K
Code:
11660
The Arial Plus is our leading panel when it comes to performance. With a high lumen output of over 120 lumens per watt, this panel is ideal for areas that require high lux levels. The Arial Plus can be installed in areas where TPa rated lighting products are essential, such as emergency exit routes including stairways and corridors.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423990 |
| EAN | 5013588116600 |
| Country Of Origin | CN |
| UNSPSC Code | 39111544 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | Education / Offices / Multiple Applications |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| CRI (Ra) | 80 |
| Switching Cycles | 25000 |
| Frequency (Hz) | 50/60 |
| IP Rating | IP20 |
| Lumens per Watt (lm/W) | 130 |
| Wattage (W) | 25 |
| Colour Temperature (K) | 4000 |
| Lumen output (lm) | 3250 |
| Height (mm) | 595 |
| Width (mm) | 595 |
| Depth (mm) | 25 |
| UNSPSC Code | 39111544 |
| Outer Box Height (mm) | 635 |
| Outer Box Width (mm) | 240 |
| Outer Box Depth (mm) | 685 |
| Individual Product Weight (kg) | 1.89 |
| Outer Box Weight (kg) | 14.78 |
| Outer Box Volume | 0.10439 |
| Outer Box Qty | 6 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 2.46 |
| Single box Height (mm) | 620 |
| Single box Width (mm) | 35 |
| Single Box Depth (mm) | 672 |
| Single Box Volume | 0.01458 |
