Arial Ascent

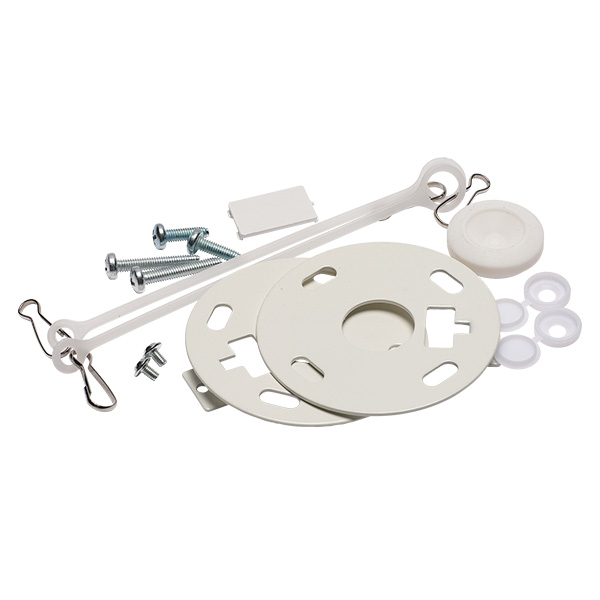

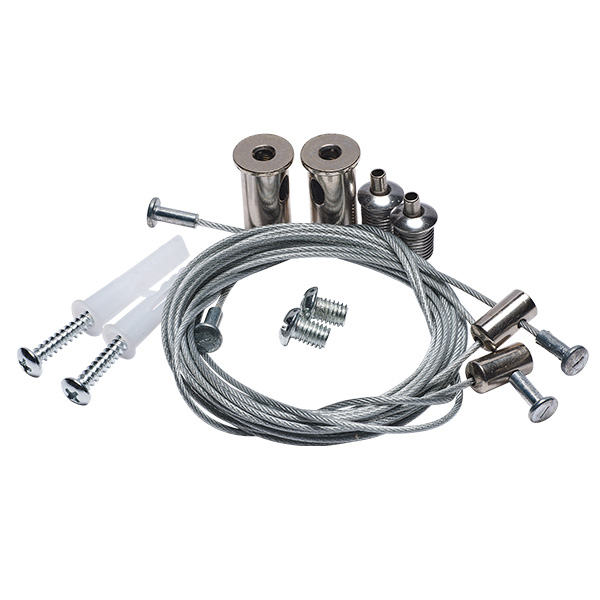

Arial Ascent 40W CCT 5ft Linear - 100% Down - Includes 1.5m Suspension Kit & Surface Mount Kit - DALI Dimmable
Code:
70113
The Arial Ascent is a linear fitting designed for various applications.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423100 |
| EAN | 5013588003719 |
| Country Of Origin | CN |
| Product Category | LED Luminaires - Plastic |
| Product Application | General Offices, Commercial Spaces & Open Areas |
| UNSPSC Code | 39111544 |
| Warranty | 7 Years |
| Operating Temperature | -20°C to + 45°C |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 90° |
| CRI (Ra) | 85 |
| Switching Cycles | 50000 |
| Frequency (Hz) | 50/60 |
| Energy Consumption (kWh/1000h) | 40 |
| IP Rating | IP20 |
| Lumens per Watt (lm/W) | 117-123 |
| Wattage (W) | 40 |
| Colour Temperature (K) | 3000/4000/6000 |
| Lumen output (lm) | 4694 (3000K) / 4807 (4000K) / 4905 (6000K) |
| Height (mm) | 37 |
| Length (mm) | 1574 |
| Depth (mm) | 186 |
| Individual Product Weight (kg) | 4.8 |
| UNSPSC Code | 39111544 |
| Single Box Weight (kg) | 5.3 |
| Single box Height (mm) | 1610 |
| Single box Width (mm) | 230 |
| Single Box Depth (mm) | 65 |
| Single Box Volume | 0.0240695 |
| Minimum Order Quantity | 1 |
