Arial Multi IP65

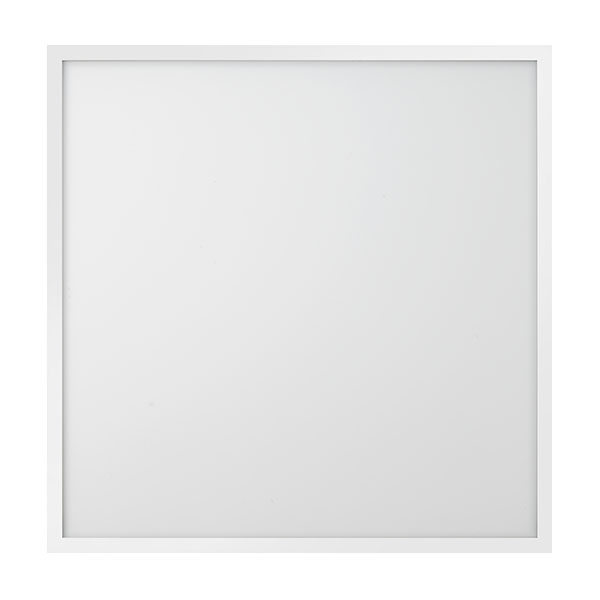

Arial Multi Backlit LED IP65 600x600 White Panel with 1-10V Dimming - 4000K
Code:
11783
The IP65 version of our Arial Multi Backlit LED Panel is an ideal product for areas that may contain moisture such as changing rooms, locker rooms & commercial kitchen environments.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423990 |
| EAN | 5013588117836 |
| Country Of Origin | CN |
| UNSPSC Code | 39111544 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | LED Panels |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| CRI (Ra) | 85 |
| Switching Cycles | 25000 |
| Frequency (Hz) | 50/60 |
| IP Rating | IP65 |
| Lumens per Watt (lm/W) | 149 |
| Energy Consumption (kWh/1000h) | 36 |
| Operating Temperature | 0°C-35°C |
| Wattage (W) | 36 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 4000 |
| Lumen output (lm) | 5347 |
| Height (mm) | 595 |
| Width (mm) | 595 |
| Depth (mm) | 25 |
| UNSPSC Code | 39111544 |
| Outer Box Qty | 4 |
| Individual Product Weight (kg) | 1.46 |
| Outer Box Weight (kg) | 12.4 |
| Outer Box Height (mm) | 685 |
| Outer Box Width (mm) | 640 |
| Outer Box Depth (mm) | 250 |
| Outer Box Volume | 0.1096 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 2 |
| Single box Height (mm) | 670 |
| Single box Width (mm) | 627 |
| Single Box Depth (mm) | 36 |
| Single Box Volume | 0.01512324 |
| Outer Box Barcode | 1178300000005 |
Optional Accessories
Code
Product Name
Unit Price
Quantity
Price
Code
10118
Product Name
Suspension Kit for the 600x600 & 1200x300 Arial Backlit LED White Panels
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
Code
10190
Product Name
Surface Mount Unit for the 600x600 Arial Backlit White Panel
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
