Arial Multi Plus

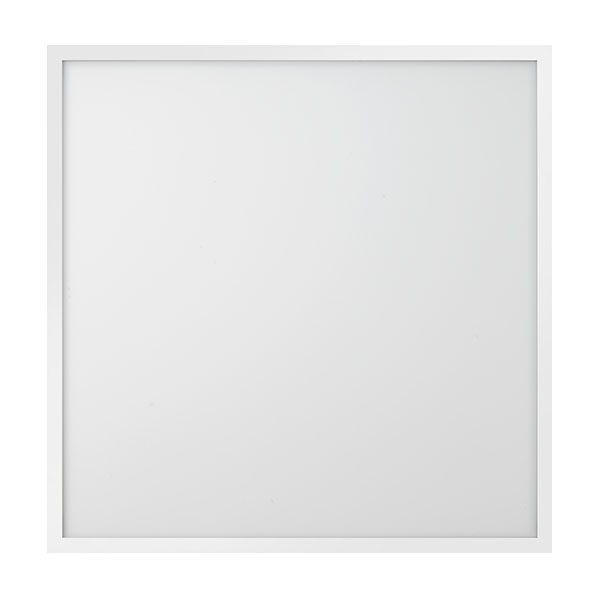

Arial Plus Multi Backlit LED UGR<19 600x600 White Panel in Emergency (1Y) - 4000K
Code:
11750
The Arial Plus Multi is our leading wattage switchable panel. The Arial Plus Multi can be installed in areas where TPa rated lighting products are essential, such as emergency exit routes including stairways and corridors.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423990 |
| EAN | 5013588117508 |
| Country Of Origin | CN |
| UNSPSC Code | 39111544 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | LED Panels |
| Warranty | 7 Years (2 Years On Site, 1 Year Battery Warranty) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| CRI (Ra) | 85 |
| Switching Cycles | 25000 |
| Frequency (Hz) | 50/60 |
| IP Rating | IP40 |
| Lumens per Watt (lm/W) | 143-149 |
| Energy Consumption (kWh/1000h) | 36 |
| Operating Temperature | 0°C-35°C |
| Emergency Lumen Output (lm) | 487 |
| Wattage (W) | 20/26/30/36 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 4000 |
| Lumen output (lm) | 2983 (20W) / 3851 (26W) / 4390 (30W) / 5159 (36W) |
| Height (mm) | 595 |
| Width (mm) | 595 |
| Depth (mm) | 25 |
| UNSPSC Code | 39111544 |
| Individual Product Weight (kg) | 2.9 |
| Outer Box Weight (kg) | 19.1 |
| Outer Box Height (mm) | 790 |
| Outer Box Width (mm) | 660 |
| Outer Box Depth (mm) | 290 |
| Outer Box Qty | 5 |
| Outer Box Volume | 0.151206 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 3.8 |
| Single box Height (mm) | 770 |
| Single box Width (mm) | 648 |
| Single Box Depth (mm) | 52 |
| Single Box Volume | 0.02594592 |
| Outer Box Barcode | 1175000000005 |
