Arial Multi Plus

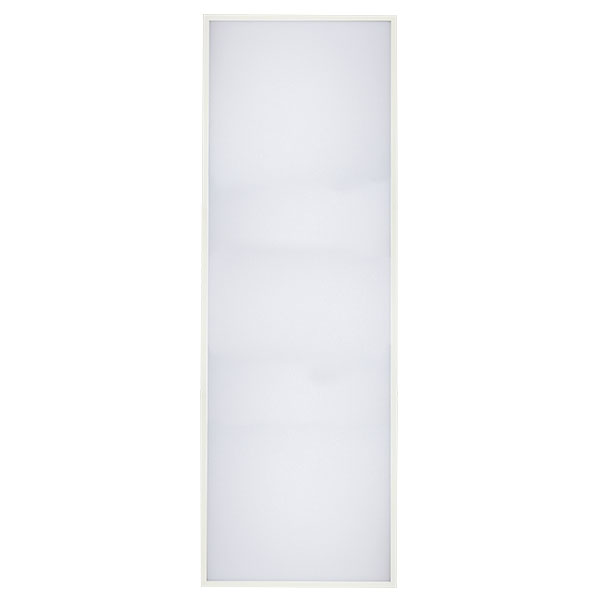

Arial Plus Multi Backlit LED UGR<19 1200x300 White Panel - 4000K
Code:
11772
The Arial Plus Multi is our leading wattage switchable panel. The Arial Plus Multi can be installed in areas where TPa rated lighting products are essential, such as emergency exit routes including stairways and corridors.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423990 |
| EAN | 5013588117720 |
| Country Of Origin | CN |
| UNSPSC Code | 39111544 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | Commercial / Education / Offices |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| CRI (Ra) | 85 |
| Switching Cycles | 25000 |
| Frequency (Hz) | 50/60 |
| IP Rating | IP40 |
| Lumens per Watt (lm/W) | 129-134 |
| Operating Temperature | 0°C-35°C |
| Energy Consumption (kWh/1000h) | 36 |
| Wattage (W) | 20/26/30/36 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 4000 |
| Lumen output (lm) | 2685 (20W) / 3434 (26W) / 3915 (30W) / 4656 (36W) |
| Height (mm) | 1195 |
| Width (mm) | 295 |
| Depth (mm) | 25 |
| UNSPSC Code | 39111544 |
| Individual Product Weight (kg) | 1.85 |
| Outer Box Weight (kg) | 14.5 |
| Outer Box Height (mm) | 1295 |
| Outer Box Width (mm) | 340 |
| Outer Box Depth (mm) | 250 |
| Outer Box Qty | 4 |
| Outer Box Volume | 0.110075 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 2.4 |
| Single box Height (mm) | 1282 |
| Single box Width (mm) | 325 |
| Single Box Depth (mm) | 36 |
| Single Box Volume | 0.0149994 |
Optional Accessories
Code
Product Name
Unit Price
Quantity
Price
Code
10118
Product Name
Suspension Kit for the 600x600 & 1200x300 Arial Backlit LED White Panels
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
Code
10192
Product Name

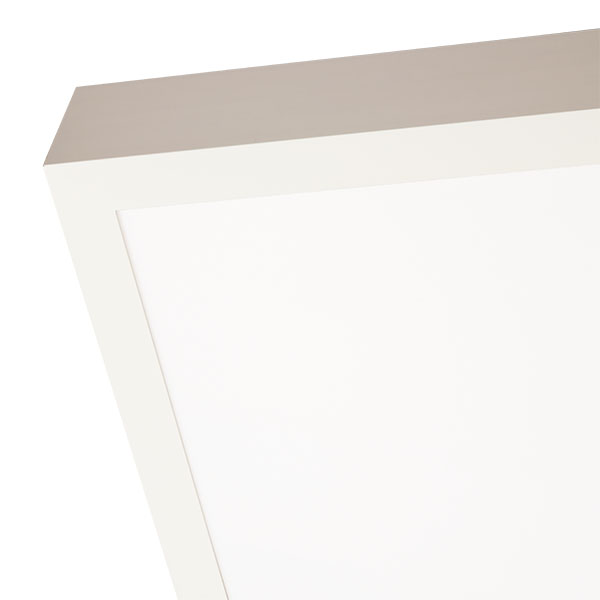

Surface Mount Unit for the 1200x300 Arial Backlit White Panel
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
