Arial Multi Plus

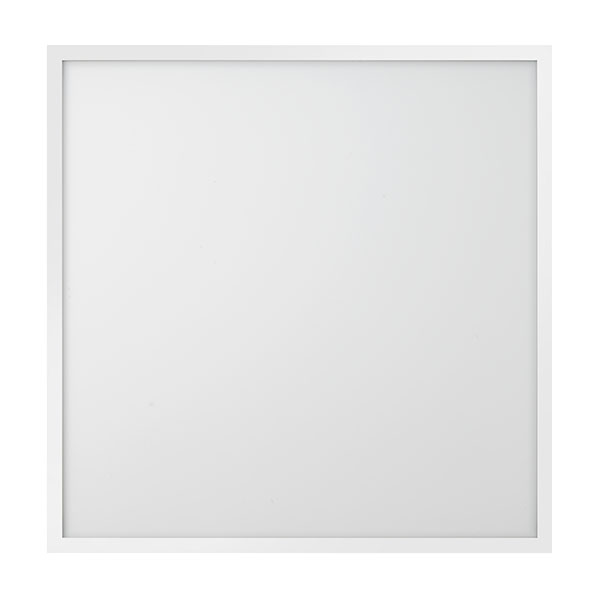

Arial Plus Multi Backlit 20W LED CCT UGR<19 600x600 White Panel in Emergency - Casambi Dimming Enabled
Code:
82159
The Arial Plus Multi is our leading wattage switchable panel. The Arial Plus Multi can be installed in areas where TPa rated lighting products are essential, such as emergency exit routes including stairways and corridors.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| EAN | 5063695002013 |
| Country Of Origin | CN |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | LED Panels |
| Commodity Code | 9405423990 |
| UNSPSC Code | 39111544 |
| Warranty | 7 Years |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| CRI (Ra) | 85 |
| Switching Cycles | 25000 |
| Frequency (Hz) | 50/60 |
| Energy Consumption (kWh/1000h) | 20 |
| IP Rating | IP40 |
| Operating Temperature | 0°C-35°C |
| Lumens per Watt (lm/W) | 129-132 |
| Emergency Lumen Output (lm) | 439 |
| Wattage (W) | 20 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 3000/4000/6000 |
| Lumen output (lm) | 2583 (3000K) / 2630 (4000K) / 2580 (6000K) |
| Width (mm) | 595 |
| Depth (mm) | 25 |
| UNSPSC Code | 39111544 |
| Height (mm) | 595 |
| Individual Product Weight (kg) | 2.9 |
| Outer Box Weight (kg) | 19.1 |
| Outer Box Height (mm) | 790 |
| Outer Box Width (mm) | 660 |
| Outer Box Depth (mm) | 290 |
| Outer Box Qty | 5 |
| Outer Box Volume | 0.151206 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 3.8 |
| Single box Height (mm) | 770 |
| Single box Width (mm) | 648 |
| Single Box Depth (mm) | 52 |
| Single Box Volume | 0.02594592 |
