Arial Multi

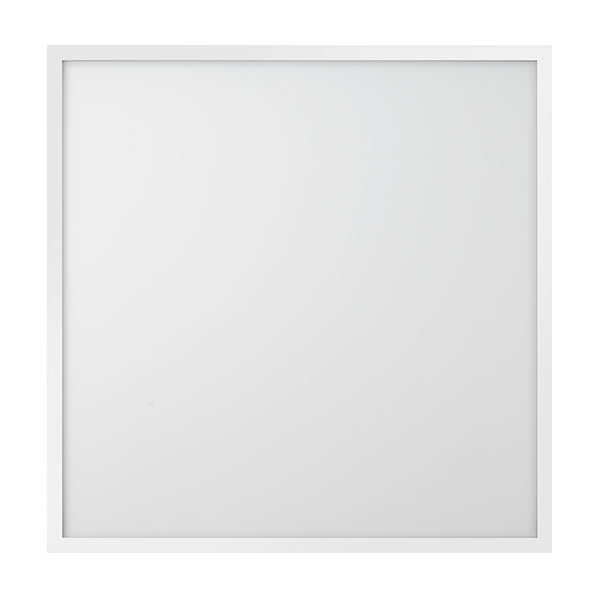

Arial Multi Backlit LED 600x600 White Panel in Emergency (1Y) - 4000K
Code:
11742
One of the newest panels in the Arial Multi range, comes with a 7 year warranty and 2 year on site warranty as standard. This cost-effective lighting solution is available with a multitude of optional extras.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423990 |
| EAN | 5013588117423 |
| Country Of Origin | CN |
| UNSPSC Code | 39111544 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | LED Panels |
| Warranty | 7 Years (2 Years On Site, 1 Year Battery Warranty) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| CRI (Ra) | 85 |
| Switching Cycles | 25000 |
| Frequency (Hz) | 50/60 |
| IP Rating | IP20 |
| Lumens per Watt (lm/W) | 138 |
| Energy Consumption (kWh/1000h) | 36 |
| Operating Temperature | 0°C-35°C |
| Wattage (W) | 20/26/30/36 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 4000 |
| Lumen output (lm) | 20W = 3081 / 26W = 3845 / 30W = 4350 / 36W = 4961 |
| Height (mm) | 595 |
| Width (mm) | 595 |
| Depth (mm) | 25 |
| UNSPSC Code | 39111544 |
| Individual Product Weight (kg) | 2.6 |
| Outer Box Weight (kg) | 17.4 |
| Outer Box Height (mm) | 790 |
| Outer Box Width (mm) | 290 |
| Outer Box Depth (mm) | 660 |
| Outer Box Volume | 0.15121 |
| Outer Box Qty | 5 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 3.4 |
| Single box Height (mm) | 770 |
| Single box Width (mm) | 52 |
| Single Box Depth (mm) | 648 |
| Single Box Volume | 0.02595 |
| Outer Box Barcode | 1174200000005 |
Optional Accessories
Code
Product Name
Unit Price
Quantity
Price
Code
10118
Product Name
Suspension Kit for the 600x600 & 1200x300 Arial Backlit LED White Panels
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
Code
10190
Product Name
Surface Mount Unit for the 600x600 Arial Backlit White Panel
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
