Arial Round

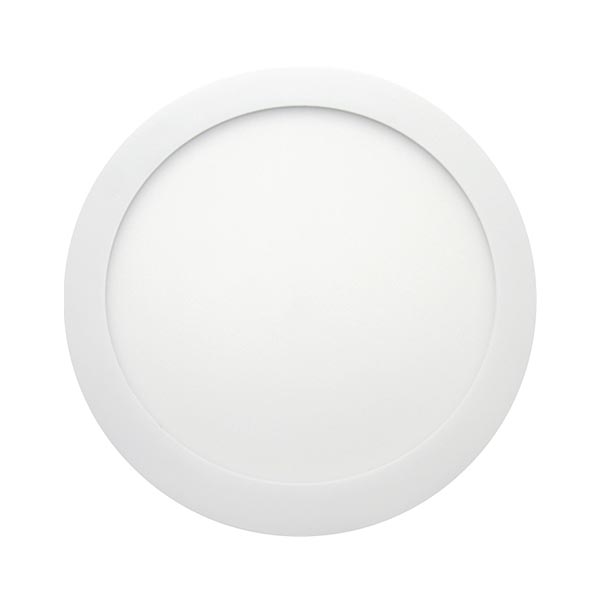

Arial Round 18W LED Panel in Emergency - DALI Dimming - 4000K
Code:
09754
The super slim design of the BELL Arial LED Round Panel makes this range of products ideal for office & educational environments alike.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Product Category | LED Luminaires - Not Plastic |
| Product Application | LED Panels |
| Commodity Code | 9405423990 |
| EAN | 5013588097541 |
| Country Of Origin | CN |
| UNSPSC Code | 39111544 |
| Warranty | 5 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 110° |
| CRI (Ra) | 85 |
| Switching Cycles | 25000 |
| Frequency (Hz) | 50/60 |
| Energy Consumption (kWh/1000h) | 18 |
| IP Rating | IP44 |
| Lumens per Watt (lm/W) | 116 |
| Wattage (W) | 18 |
| Colour Temperature (K) | 4000 |
| Lumen output (lm) | 2094 |
| Height (mm) | 225 |
| Diameter (mm) | 225 |
| UNSPSC Code | 39111544 |
| Individual Product Weight (kg) | 1.537 |
| Width (mm) | 225 |
| Depth (mm) | 11 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 1.653 |
| Single box Height (mm) | 40 |
| Single box Width (mm) | 230 |
| Single Box Depth (mm) | 230 |
| Single Box Volume | 0.00212 |
| Outer Box Height (mm) | 720 |
| Outer Box Width (mm) | 480 |
| Outer Box Depth (mm) | 250 |
| Outer Box Volume | 0.0864 |
