Arial T-Pro Multi

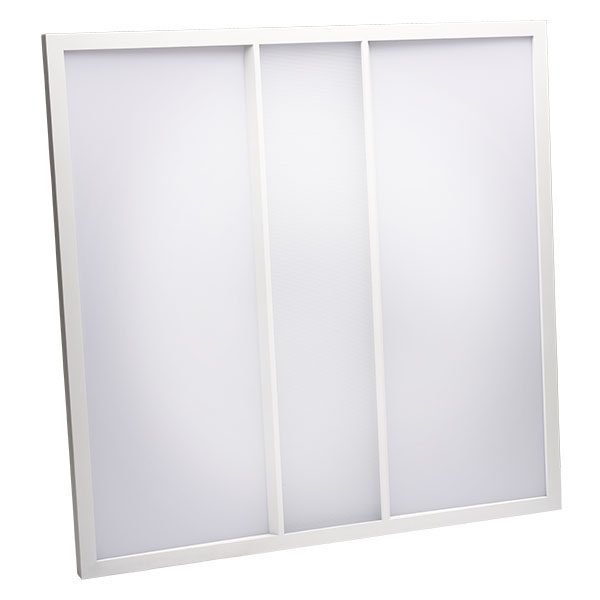

Arial T-Pro Multi 36W LED CCT UGR<19 600x600 White Panel with DALI Dimming
Code:
11417
The Arial T-Pro Multi Backlit LED CCT Panel offers a unique twist on a standard LED panel. The contemporary slimline design and aesthetic light distribution works well in areas that would like to move away from the familiar style of panel we have all become accustomed to.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423990 |
| Country Of Origin | CN |
| EAN | 5013588114170 |
| UNSPSC Code | 39111544 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | Commercial / Office |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| CRI (Ra) | 85 |
| IP Rating | IP20 |
| Life Hours | 50000 |
| Frequency (Hz) | 50/60 |
| Lumens per Watt (lm/W) | 128-133 |
| Energy Consumption (kWh/1000h) | 36 |
| Operating Temperature | 0°C-35°C |
| Wattage (W) | 36 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 3000/4000/6000 |
| Lumen output (lm) | 4614 (3000K) / 4789 (4000K) / 4614 (6000K) |
| Individual Product Weight (kg) | 2.5 |
| Outer Box Weight (kg) | 13 |
| Outer Box Height (mm) | 660 |
| Outer Box Width (mm) | 645 |
| Outer Box Depth (mm) | 250 |
| Outer Box Qty | 4 |
| Outer Box Volume | 0.106425 |
| UNSPSC Code | 39111544 |

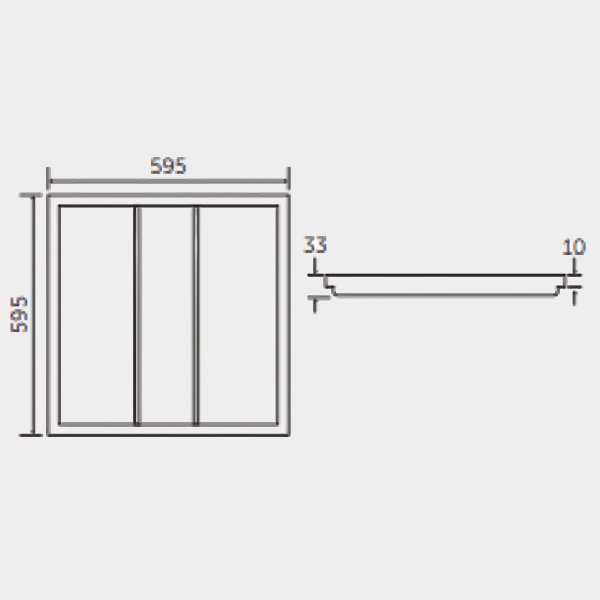

| Height (mm) | 595 |
| Width (mm) | 595 |
| Depth (mm) | 33 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 3.25 |
| Single box Height (mm) | 645 |
| Single box Width (mm) | 632 |
| Single Box Depth (mm) | 55 |
| Single Box Volume | 0.0224202 |
| Outer Box Barcode | 1141700000005 |
Optional Accessories
Code
Product Name
Unit Price
Quantity
Price
Code
10118
Product Name
Suspension Kit for the 600x600 & 1200x300 Arial Backlit LED White Panels
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
Code
10190
Product Name
Surface Mount Unit for the 600x600 Arial Backlit White Panel
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
