Lumo Wallpack

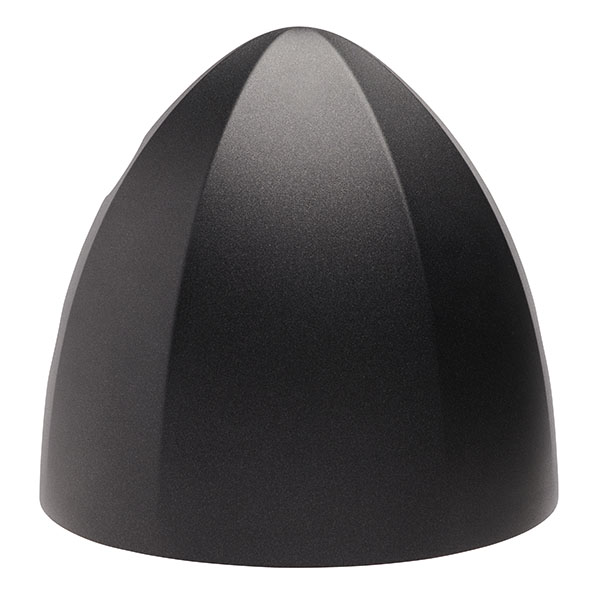

Lumo 13/16/18/20/25W LED CCT Asymmetric Wallpack
Code:
11500
Designed to be used where the aesthetics of the light fitting, along with a tough robust construction is needed. The fittings are IP66 and IK8 compliant, supplied complete with an opal diffuser for even light distribution. Available in Standard / Photocell / Emergency / Emergency Photocell versions.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423100 |
| EAN | 5013588115009 |
| Country Of Origin | CN |
| UNSPSC Code | 39111612 |
| Product Category | LED Luminaires - Plastic |
| Product Application | External Lighting |
| Warranty | 7 Years |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Switching Cycles | 50000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 78mA |
| Energy Consumption (kWh/1000h) | 25 |
| IP Rating | IP66 |
| CRI (Ra) | 80 |
| Lumens per Watt (lm/W) | 123-133 |
| Wattage (W) | 13/16/18/20/25 |
| Equivalent Wattage (W) | 50 |
| Colour Temperature (K) | 3000/4000/6000 |
| IK Rating | IK08 |
| Lumen output (lm) | 13W = 1669 (3000K) / 1684 (4000K) / 1603 (6000K) - 16W = 2078 (3000K) / 2207 (4000K) / 2153 (6000K) - 18W = 2341 (3000K) / 2500 (4000K) / 2427 (6000K) - 20W = 2538 (3000K) / 2720 (4000K) / 2632 (6000K) - 25W = 3080 (3000K) / 3341 (4000K) / 3190 (6000K) |
| Height (mm) | 238 |
| Width (mm) | 212 |
| Depth (mm) | 138 |
| UNSPSC Code | 39111612 |
| Outer Box Height (mm) | 500 |
| Outer Box Width (mm) | 355 |
| Outer Box Depth (mm) | 280 |
| Outer Box Qty | 4 |
| Outer Box Volume | 0.0497 |
| Individual Product Weight (kg) | 1.9 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 2.2 |
| Single box Height (mm) | 260 |
| Single box Width (mm) | 235 |
| Single Box Depth (mm) | 160 |
| Single Box Volume | 0.00978 |
| Inner Box Barcode | 5013588115009 |
| Outer Box Barcode | 1150000000004 |
