Muro Wallpack

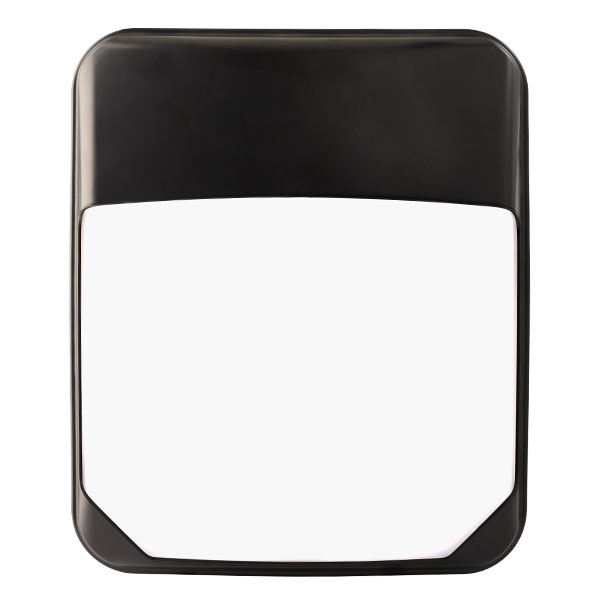

Muro 16/18/20/22W LED CCT Wallpack with Microwave Sensor
Code:
11352
Designed to be used where the aesthetics of the light fitting, along with a tough robust construction, is needed. The fittings are IP65 and IK8 compliant, supplied complete with an opal diffuser for even light distribution.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423100 |
| EAN | 5013588113524 |
| Country Of Origin | CN |
| UNSPSC Code | 39111612 |
| Product Category | LED Luminaires - Plastic |
| Product Application | External Lighting |
| Warranty | 3 Years (1 Year On Site) |
| Volts (V) | 220/240 |
| Life Hours | 35000 |
| CRI (Ra) | 80 |
| Switching Cycles | 30000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 16W = 370mA / 18W = 418mA / 20W = 464mA / 22W = 510mA |
| Energy Consumption (kWh/1000h) | 22 |
| IP Rating | IP65 |
| Beam Angle | 113° |
| Operating Temperature | -30°C - +35°C |
| Lumens per Watt (lm/W) | 106-131 |
| Wattage (W) | 16/18/20/22 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 3000/4000/6000 |
| IK Rating | IK08 |
| Lumen output (lm) | 16W = 1908 (3000K) - 2095 (4000K) - 1973 (6000K) / 18W = 2056 (3000K) - 2289 (4000K) - 2141 (6000K) / 20W = 2222 (3000K) - 2481 (4000K) - 2290 (6000K) / 22W = 2329 (3000K) - 2652 (4000K) - 2418 (6000K) |
| UNSPSC Code | 39111612 |
| Height (mm) | 305 |
| Width (mm) | 255 |
| Outer Box Weight (kg) | 12.9 |
| Outer Box Height (mm) | 650 |
| Outer Box Width (mm) | 550 |
| Outer Box Depth (mm) | 280 |
| Outer Box Volume | 0.1001 |
| Individual Product Weight (kg) | 1.04 |
| Outer Box Qty | 10 |
| Length (mm) | 100 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 1.14 |
| Single box Height (mm) | 310 |
| Single box Width (mm) | 260 |
| Single Box Depth (mm) | 105 |
| Single Box Volume | 0.008463 |
| Outer Box Barcode | 1135200000010 |
