Dura Batten
Dura 20W LED Anti-Corrosive 4ft Single Batten in Emergency - 4000K
Code:
06723
The Dura LED Anti Corrosive Batten is one of BELL’s flagship Luminaires. This fully enclosed luminaire comes with stainless steel diffuser clips, ideal for exterior lighting projects that are open to the elements.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423100 |
| EAN | 5013588067230 |
| Country Of Origin | CN |
| UNSPSC Code | 39111544 |
| Product Category | LED Luminaires - Plastic |
| Product Application | LED Batten |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Candelas | 700 |
| Life Hours | 50000 |
| Beam Angle | 143° |
| CRI (Ra) | 85 |
| Switching Cycles | 25000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 540mA |
| Energy Consumption (kWh/1000h) | 20 |
| IP Rating | IP66 |
| Lumens per Watt (lm/W) | 173 |
| Emergency Lumen Output (lm) | 414 |
| Wattage (W) | 20 |
| Equivalent Wattage (W) | 45 |
| Colour Temperature (K) | 4000 |
| IK Rating | IK10 |
| Lumen output (lm) | 3448 |
| UNSPSC Code | 39111544 |
| Outer Box Qty | 6 |

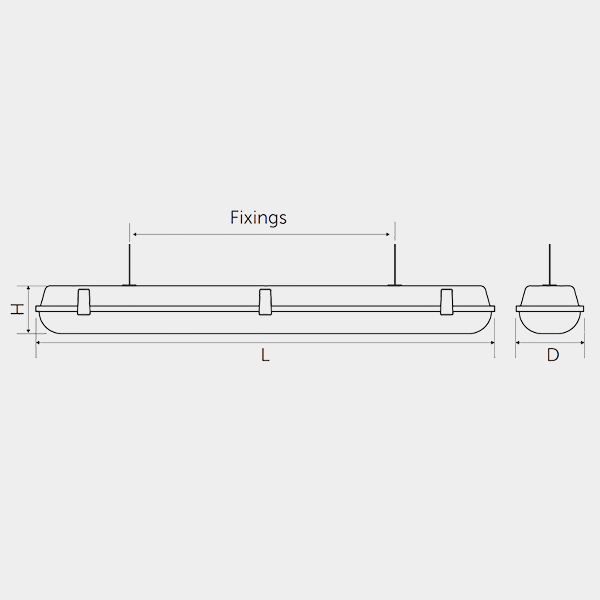

| Height (mm) | 90 |
| Length (mm) | 1263 |
| Outer Box Height (mm) | 1310 |
| Outer Box Width (mm) | 310 |
| Outer Box Depth (mm) | 220 |
| Individual Product Weight (kg) | 1.78 |
| Outer Box Weight (kg) | 13.17 |
| Plastic Packaging Weight (kg) | 0.01 |
| Outer Box Volume | 0.08934 |
| Depth (mm) | 90 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 2.03 |
| Single box Height (mm) | 1270 |
| Single box Width (mm) | 100 |
| Single Box Depth (mm) | 100 |
| Single Box Volume | 0.0127 |
| Outer Box Barcode | 0672300000006 |
