Dura CCT V2

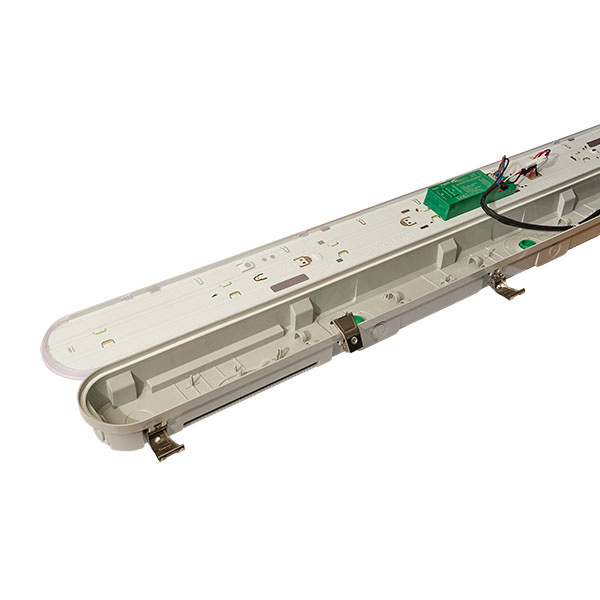

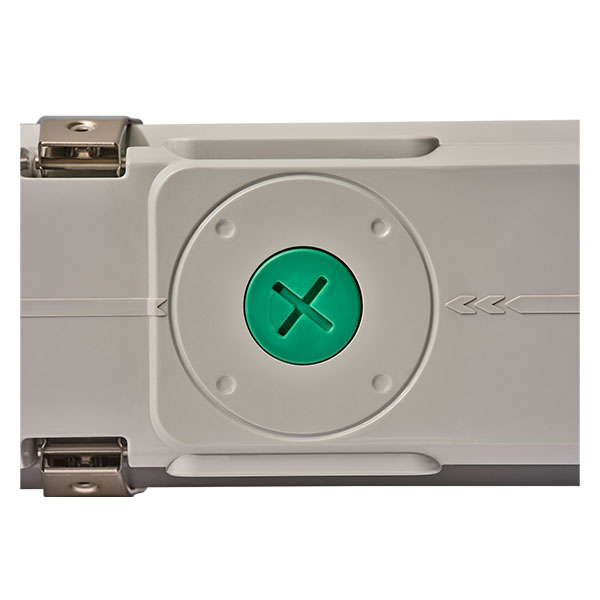

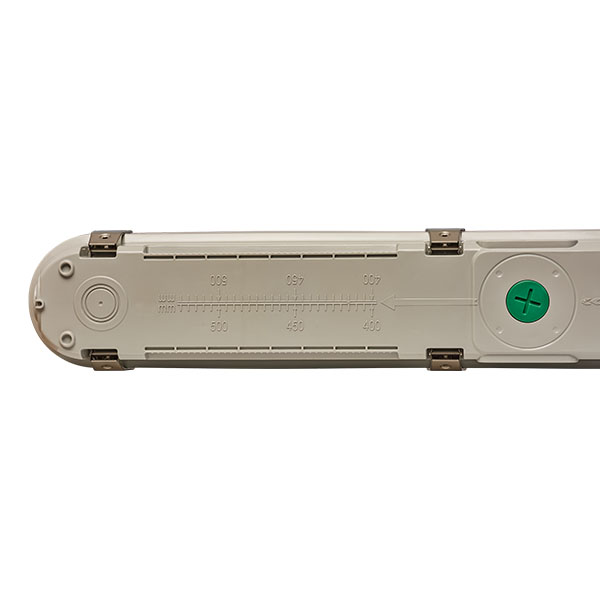

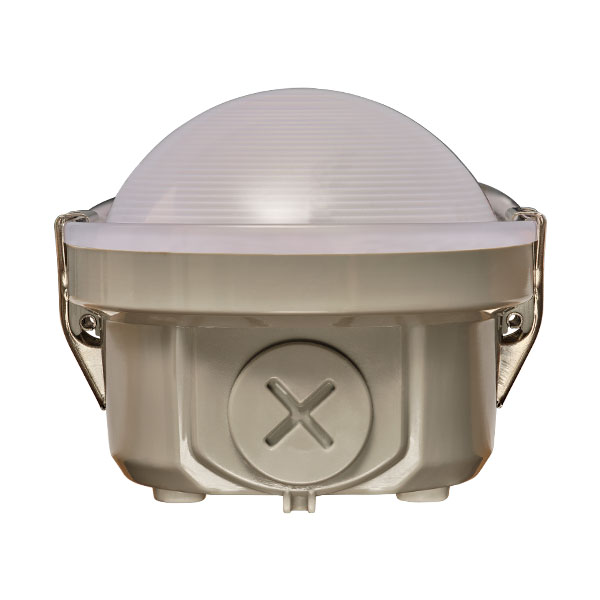

Dura 16/21/26/32W Wattage Switchable LED CCT V2 Anti-Corrosive 4ft Batten
Code:
10275V2
The Dura LED CCT Anti-Corrosive Batten is part of one of BELL's flagship luminaire families. This fitting takes the reliability of the Dura Batten and adds CCT & wattage switchable functionality.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| EAN | 5013588002804 |
| Country Of Origin | CN |
| Product Category | LED Luminaires - Plastic |
| Product Application | LED Batten |
| Commodity Code | 9405423100 |
| UNSPSC Code | 39111544 |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 120° |
| CRI (Ra) | 85 |
| Switching Cycles | 25000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 90mA |
| Energy Consumption (kWh/1000h) | 32 |
| IP Rating | IP66 |
| Lumens per Watt (lm/W) | 142-161 |
| Operating Temperature | -30°C - +35°C |
| Wattage (W) | 16/21/26/32 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 3000/4000/6000 |
| IK Rating | IK10 |
| Lumen output (lm) | 16W = 2579 (3/4/6000K) / 21W = 3311 (3000K) - 3369 (4000K) - 3311 (6000K) / 26W = 3874 (3000K) - 4186 (4000K) - 3952 (6000K) / 32W = 4553 (3000K) - 5051 (4000K) - 4967 (6000K) |
| Height (mm) | 78 |
| Width (mm) | 96 |
| Length (mm) | 1270 |
| Individual Product Weight (kg) | 1.45 |
| Outer Box Weight (kg) | 10.8 |
| Outer Box Height (mm) | 180 |
| Outer Box Width (mm) | 315 |
| Outer Box Depth (mm) | 1290 |
| Outer Box Qty | 6 |
| Outer Box Volume | 0.073143 |
| UNSPSC Code | 39111544 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 1.6 |
| Single box Height (mm) | 83 |
| Single box Width (mm) | 100 |
| Single Box Depth (mm) | 1275 |
| Single Box Volume | 0.0105825 |
| Outer Box Barcode | 10275V2000006 |
Optional Accessories
Code
Product Name
Unit Price
Quantity
Price
Code
10284
Product Name
Plug In Microwave Sensor for the Dura CCT V2 Battens with Dual On/Off & Corridor Dim Functionality
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
Code
10283
Product Name
Plug In Emergency Pack for the Dura LED CCT V2 Battens - Self Test On/Off
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
