Mentor V2 Batten
Mentor V2 20/27/33/38W LED 4ft CCT Batten
Code:
10285V2
The Mentor Wattage Switchable LED Integrated CCT Batten is colour switchable, with a choice of 3000K, 4000K, or 6000K, depending on the application.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423100 |
| EAN | 5013588000664 |
| Country Of Origin | CN |
| UNSPSC Code | 39111544 |
| Product Category | LED Luminaires - Plastic |
| Product Application | Schools / Colleges / Offices |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 115° |
| CRI (Ra) | 80 |
| Switching Cycles | 25000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 960mA |
| Energy Consumption (kWh/1000h) | 38 |
| IP Rating | IP40 |
| Lumens per Watt (lm/W) | 133-143 |
| Wattage (W) | 20/27/33/38 |
| Colour Temperature (K) | 3000/4000/6000 |
| Candelas | 874-1639 |
| IK Rating | IK08 |
| Lumen output (lm) | 20W = 2667 (3000K) / 2835 (4000K) / 2857 (6000K) - 27W = 3600 (3000K) / 3827 (4000K) / 3857 (6000K) - 33W = 4168 (3000K) / 4430 (4000K) / 4464 (6000K) - 38W = 4799 (3000K) / 5101 (4000K) / 5140 (6000K) |

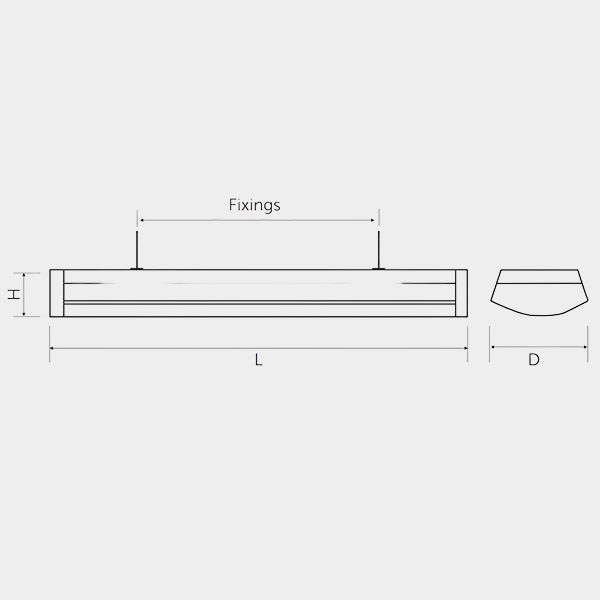

| Height (mm) | 97 |
| Length (mm) | 1205 |
| UNSPSC Code | 39111544 |
| Individual Product Weight (kg) | 3.52 |
| Outer Box Weight (kg) | 7.6 |
| Outer Box Height (mm) | 230 |
| Outer Box Width (mm) | 220 |
| Outer Box Depth (mm) | 1225 |
| Outer Box Qty | 2 |
| Outer Box Volume | 0.061985 |
| Depth (mm) | 200 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 3.82 |
| Single box Height (mm) | 105 |
| Single box Width (mm) | 205 |
| Single Box Depth (mm) | 1210 |
| Single Box Volume | 0.02604525 |
| Outer Box Barcode | 10285V2000002 |
