Merit Batten

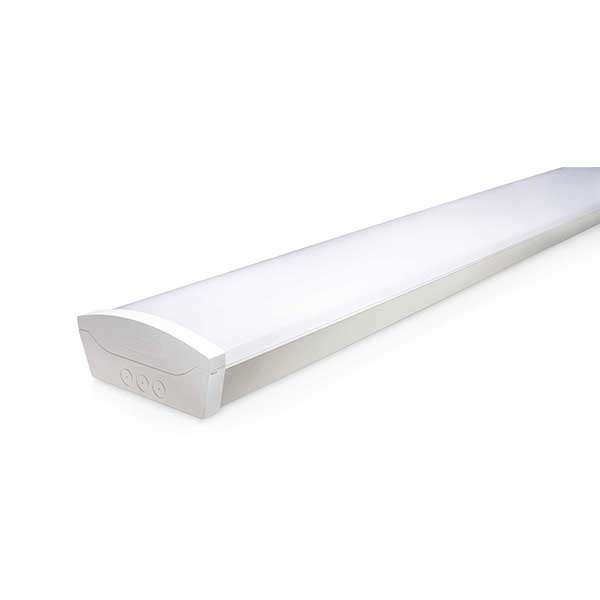

Merit 30/38/45/53W LED CCT 5ft Batten
Code:
70143
The Merit Wattage Switchable LED Integrated CCT Batten is colour switchable, with a choice of 3000K, 4000K, or 6000K, depending on the application.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423100 |
| Country Of Origin | CN |
| EAN | 5013588701431 |
| UNSPSC Code | 39111544 |
| Product Category | LED Luminaires - Plastic |
| Product Application | LED Batten |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 120° |
| CRI (Ra) | 80 |
| Switching Cycles | 50000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 350mA |
| Energy Consumption (kWh/1000h) | 53 |
| IP Rating | IP20 |
| Lumens per Watt (lm/W) | 120-134 |
| Wattage (W) | 30/38/45/53 |
| Colour Temperature (K) | 3000/4000/6000 |
| IK Rating | IK08 |
| Lumen output (lm) | 30W = 3800 (3000K) - 4012 (4000K) - 3780 (6000K) / 38W = 4683 (3000K) - 4884 (4000K) - 4661 (6000K) / 45W = 5704 (3000K) - 5874 (4000K) - 5664 (6000K) / 53W = 6379 (3000K) - 6859 (4000K) - 6443 (6000K) |
| Height (mm) | 87 |
| Width (mm) | 205 |
| Length (mm) | 1478 |
| Individual Product Weight (kg) | 1.6 |
| Outer Box Weight (kg) | 7.4 |
| Outer Box Qty | 4 |
| Outer Box Height (mm) | 1505 |
| Outer Box Width (mm) | 430 |
| Outer Box Depth (mm) | 195 |
| Outer Box Volume | 0.12619425 |
| UNSPSC Code | 39111544 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 1.85 |
| Single box Height (mm) | 1490 |
| Single box Width (mm) | 210 |
| Single Box Depth (mm) | 90 |
| Single Box Volume | 0.028161 |
| Outer Box Barcode | 7014300000004 |
Optional Accessories
Code
Product Name
Unit Price
Quantity
Price
Code
10282V2
Product Name
Plug In Microwave Sensor On/Off for Ultra CCT V2 & Merit LED CCT Battens
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
Code
10281V2
Product Name
Plug In Emergency Pack for the Ultra LED CCT V2 Battens & Merit Battens - Self Test On/Off
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
