Aqua1
Aqua1 9/14/18W LED CCT White Bulkhead with Microwave Sensor
Code:
11602
This cost-effective, colour switchable bulkhead is IP65 as standard, with the benefits of a high transmission frosted diffuser and rear, side & BESA Box cable entry. It is an ideal replacement for 28W 2D fittings.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423100 |
| EAN | 5013588116020 |
| Country Of Origin | CN |
| UNSPSC Code | 39111612 |
| Product Category | LED Luminaires - Plastic |
| Product Application | Multi-Application IP65 Bulkhead |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| CRI (Ra) | 85 |
| Switching Cycles | 30000 |
| Frequency (Hz) | 50 |
| Energy Consumption (kWh/1000h) | 18 |
| IP Rating | IP65 |
| Beam Angle | 116° |
| LED Drive Current | 130mA |
| Lumens per Watt (lm/W) | 134 |
| Wattage (W) | 9/14/18 |
| Equivalent Wattage (W) | 16-38 |
| Colour Temperature (K) | 3000/4000/6000 |
| Candelas | 372-699 |
| IK Rating | IK10 |
| Lumen output (lm) | 9W = 1205 (3000K) / 1259 (4000K) / 1264 (6000K) - 14W = 1751 (3000K) / 1911 (4000K) / 1868 (6000K) - 18W = 2148 (3000K) / 2408 (4000K) / 2202 (6000K) |

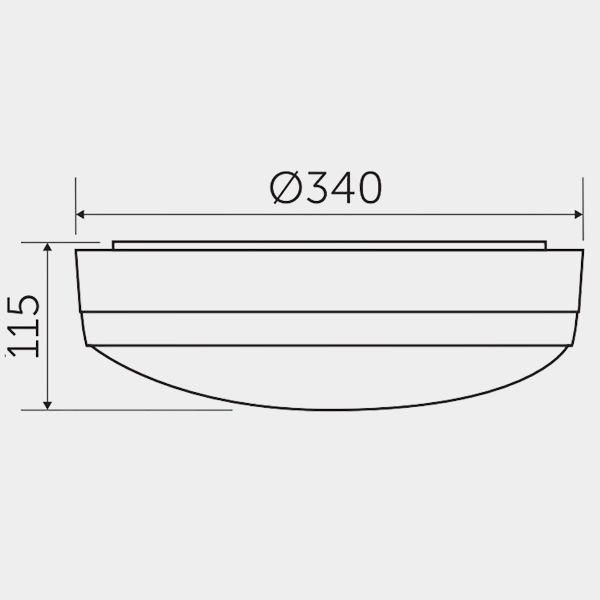

| Diameter (mm) | 335 |
| UNSPSC Code | 39111612 |
| Outer Box Height (mm) | 700 |
| Outer Box Width (mm) | 460 |
| Outer Box Depth (mm) | 360 |
| Outer Box Qty | 8 |
| Individual Product Weight (kg) | 0.903 |
| Outer Box Weight (kg) | 10.9 |
| Outer Box Volume | 0.11592 |
| Depth (mm) | 110 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 1.178 |
| Single box Height (mm) | 113 |
| Single box Width (mm) | 340 |
| Single Box Depth (mm) | 343 |
| Single Box Volume | 0.01318 |
| Outer Box Barcode | 1160200000008 |
