Arial Pro

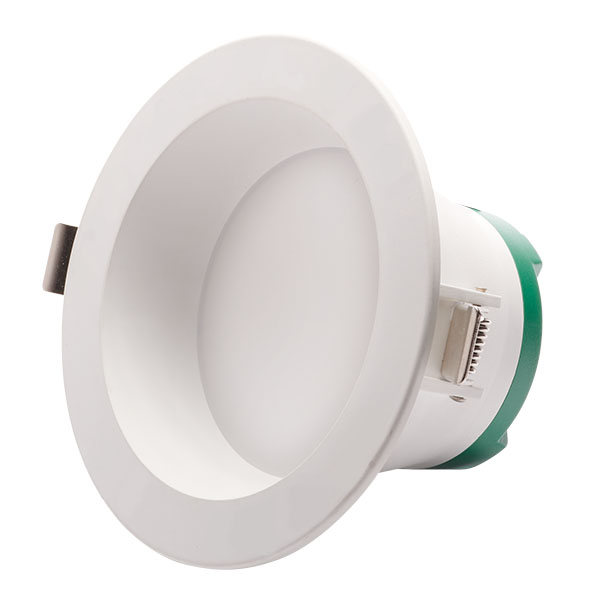

Arial Pro 10W IP65 LED CCT Downlight with DALI Dimming
Code:
10971
The Arial Pro LED Downlight is a sleek looking luminaire designed to replace cumbersome CFL fittings.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423100 |
| EAN | 5013588109718 |
| Country Of Origin | CN |
| UNSPSC Code | 39111515 |
| Product Category | LED Luminaires - Plastic |
| Product Application | LED Downlights |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 90° |
| CRI (Ra) | 85 |
| Switching Cycles | 25000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 230mA |
| Energy Consumption (kWh/1000h) | 10 |
| IP Rating | IP65 |
| Operating Temperature | -5°C - +35°C |
| Lumens per Watt (lm/W) | 121-131 |
| Wattage (W) | 10 |
| Equivalent Wattage (W) | 50 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 3000/4000/6000 |
| Lumen output (lm) | 1209 (3000K) / 1309 (4000K) / 1243 (6000K) |
| UNSPSC Code | 39111515 |
| Outer Box Qty | 30 |
| Height (mm) | 71 |
| Diameter (mm) | 115 |
| Outer Box Width (mm) | 285 |
| Outer Box Depth (mm) | 525 |
| Outer Box Weight (kg) | 9.5 |
| Individual Product Weight (kg) | 0.195 |
| Outer Box Height (mm) | 475 |
| Outer Box Volume | 0.071071875 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 0.275 |
| Single box Height (mm) | 90 |
| Single box Width (mm) | 135 |
| Single Box Depth (mm) | 170 |
| Single Box Volume | 0.00207 |
| Outer Box Barcode | 1097100000030 |
