Arial Pro

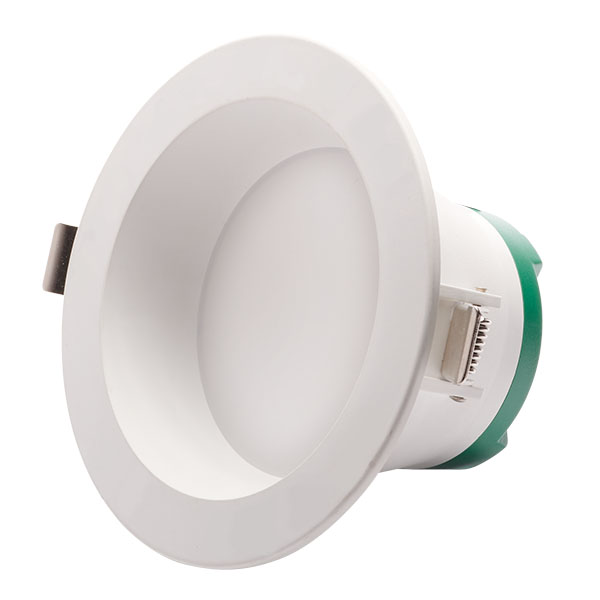

Arial Pro 20W IP65 LED CCT Downlight - Casambi Dimming Enabled
Code:
82148
The Arial Pro LED Downlight is a sleek looking luminaire designed to replace cumbersome CFL fittings.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| EAN | 5063695001825 |
| Country Of Origin | CN |
| Product Category | LED Luminaires - Plastic |
| Product Application | LED Downlights |
| Commodity Code | 9405423100 |
| UNSPSC Code | 39111515 |
| Warranty | 7 Years |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 90° |
| CRI (Ra) | 85 |
| Switching Cycles | 25000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 500mA |
| Energy Consumption (kWh/1000h) | 20 |
| IP Rating | IP65 |
| Operating Temperature | -5°C - +35°C |
| Lumens per Watt (lm/W) | 129-144 |
| Wattage (W) | 20 |
| Equivalent Wattage (W) | 100 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 3000/4000/6000 |
| Lumen output (lm) | 2612 (3000K) / 2885 (4000K) / 2585 (6000K) |
| Height (mm) | 117 |
| Diameter (mm) | 240 |
| UNSPSC Code | 39111515 |
| Individual Product Weight (kg) | 0.56 |
| Outer Box Weight (kg) | 10.5 |
| Outer Box Height (mm) | 475 |
| Outer Box Width (mm) | 515 |
| Outer Box Depth (mm) | 515 |
| Outer Box Qty | 12 |
| Outer Box Volume | 0.12598 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 0.75 |
| Single box Height (mm) | 143 |
| Single box Width (mm) | 250 |
| Single Box Depth (mm) | 250 |
| Single Box Volume | 0.00894 |
