Spectrum Bulkhead

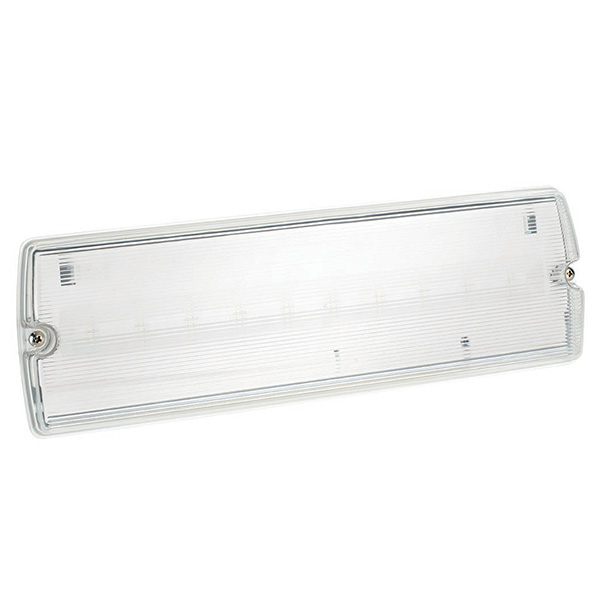

Spectrum DALI 3.3W IP65 Self-Test Emergency Bulkhead
Code:
09152
Our most popular emergency bulkhead, the 3.3W IP65 bulkhead has a low-profile design and is suitable for both internal & external use. The optional exit blade accessory transforms this Emergency Bulkhead into an IP65 Exit Blade.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 8513100000 |
| EAN | 5013588003313 |
| Country Of Origin | CN |
| Product Category | Emergency Lighting / Luminaire with Battery |
| Product Application | Emergency Lighting |
| Warranty | 5 Years |
| Volts (V) | 220/240 |
| Energy Consumption (kWh/1000h) | 4 |
| IP Rating | IP65 |
| Switching Cycles | 15000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 300mA |
| Lumens per Watt (lm/W) | 57 |
| Operating Temperature | 0°C - +35°C |
| Life Hours | 30000 |
| Beam Angle | 120° |
| CRI (Ra) | 80 |
| Wattage (W) | 3.3 |
| Colour Temperature (K) | 6500 |
| Candelas | 38 |
| IK Rating | IK07 |
| Lumen output (lm) | 187 |
| Height (mm) | 110 |
| Width (mm) | 352 |
| Depth (mm) | 60 |
| Individual Product Weight (kg) | 0.54 |
| Outer Box Weight (kg) | 7.7 |
| Outer Box Height (mm) | 410 |
| Outer Box Width (mm) | 375 |
| Outer Box Depth (mm) | 255 |
| Outer Box Qty | 12 |
| Outer Box Volume | 0.03920625 |
| Single Box Weight (kg) | 0.59 |
| Single box Height (mm) | 120 |
| Single box Width (mm) | 65 |
| Single Box Depth (mm) | 358 |
| Single Box Volume | 0.0027924 |
| Outer Box Barcode | 0915200000012 |
