Fitting

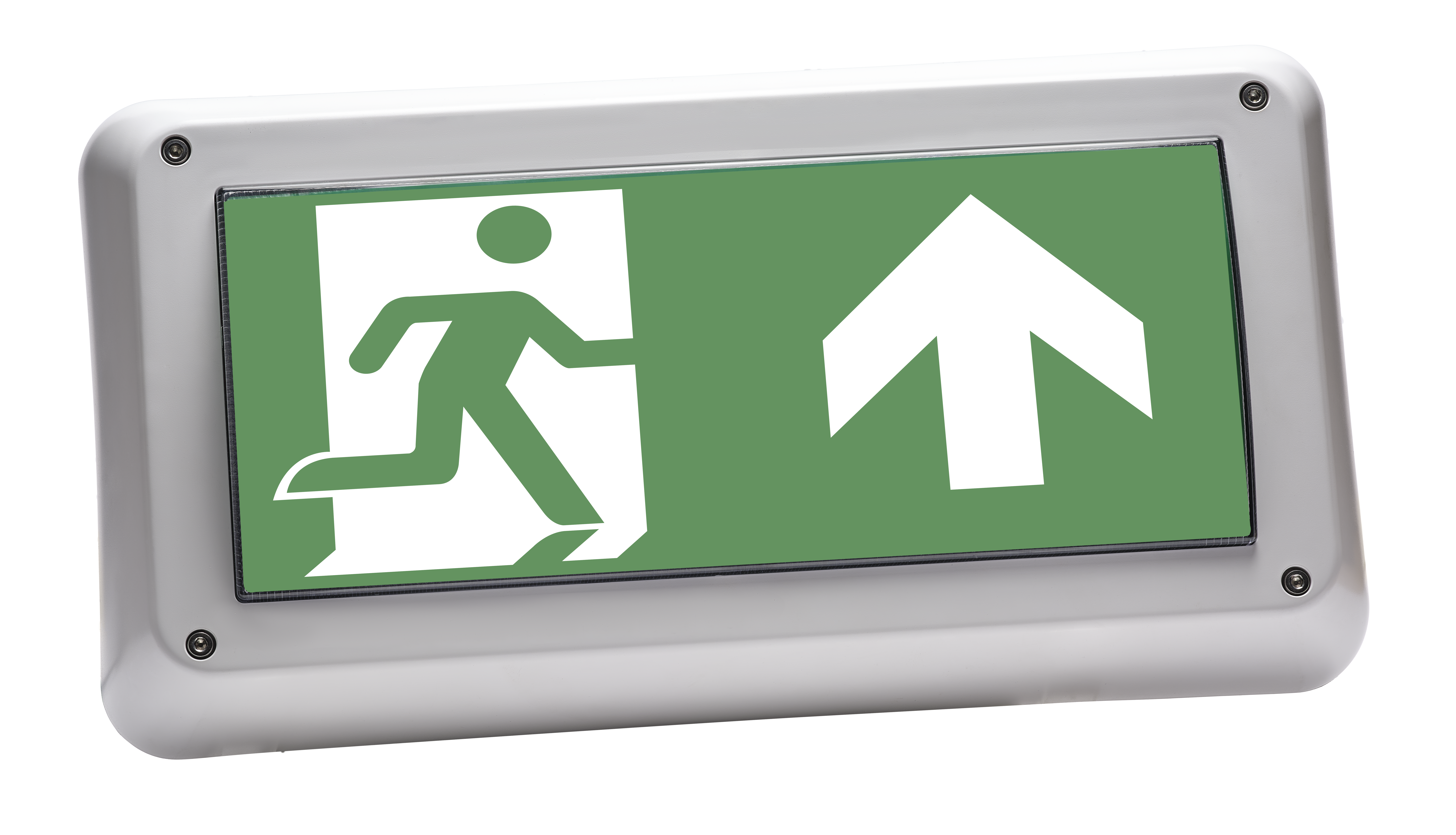

Spectrum Endure 3W IP65 Anti-Ligature Exit Sign - IK10
Code:
09158
Please log in to see pricing
To view product pricing and place orders, please log in to your account.
Designed for high-risk and secure applications, the Spectrum Endure anti-ligature bulkhead combines exceptional durability with safe, dependable illumination.
Specification
| Product Category | Emergency Lighting / Luminaire with Battery |
| Product Application | Emergency Lighting |
| Country Of Origin | CN |
| Commodity Code | 8513100000 |
| EAN | 5013588003368 |
| Warranty | 5 Years |
| Life Hours | 35000 |
| Volts (V) | 220/240 |
| Frequency (Hz) | 50/60 |
| Wattage (W) | 3 |
| Energy Consumption (kWh/1000h) | 3 |
| LED Drive Current | 25mA |
| Lumen output (lm) | 170 |
| Lumens per Watt (lm/W) | 57 |
| Colour Temperature (K) | 6000 |
| CRI (Ra) | 80 |
| Beam Angle | 120° |
| Height (mm) | 186 |
| Width (mm) | 356 |
| Individual Product Weight (kg) | 1.17 |
| Depth (mm) | 55 |
| IK Rating | IK10 |
| IP Rating | IP65 |
| Operating Temperature | 0°C - +35°C |
| Height (mm) | 186 |
| Width (mm) | 356 |
| Individual Product Weight (kg) | 1.17 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 1.27 |
| Single box Height (mm) | 193 |
| Single box Width (mm) | 73 |
| Single Box Depth (mm) | 365 |
| Single Box Volume | 0.005142485 |
| Outer Box Qty | 8 |
| Outer Box Weight (kg) | 10.6 |
| Outer Box Height (mm) | 380 |
| Outer Box Width (mm) | 310 |
| Outer Box Depth (mm) | 400 |
| Outer Box Volume | 0.04712 |
| Depth (mm) | 55 |
