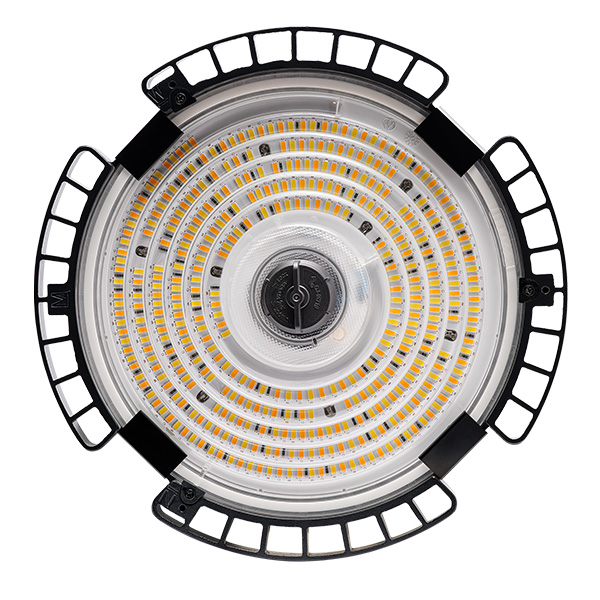

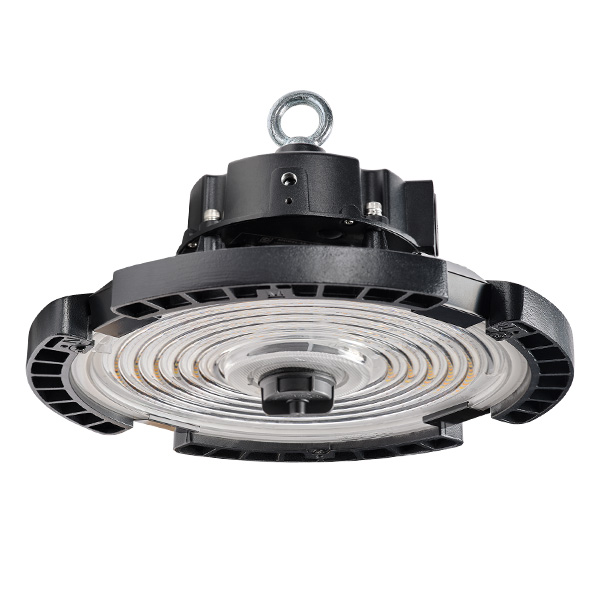

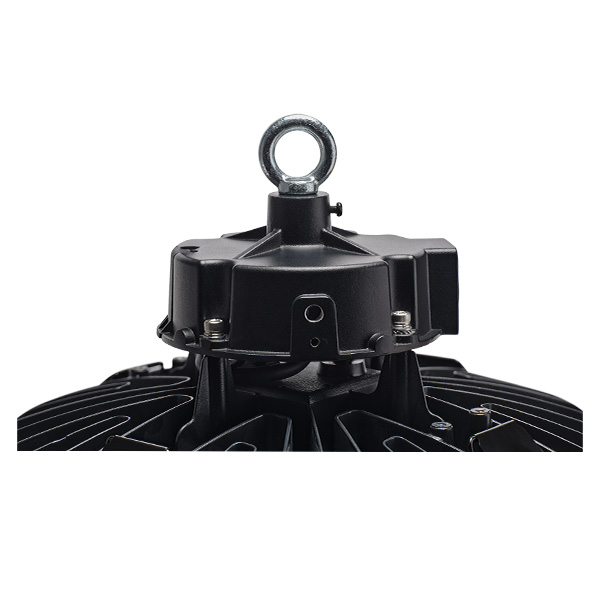

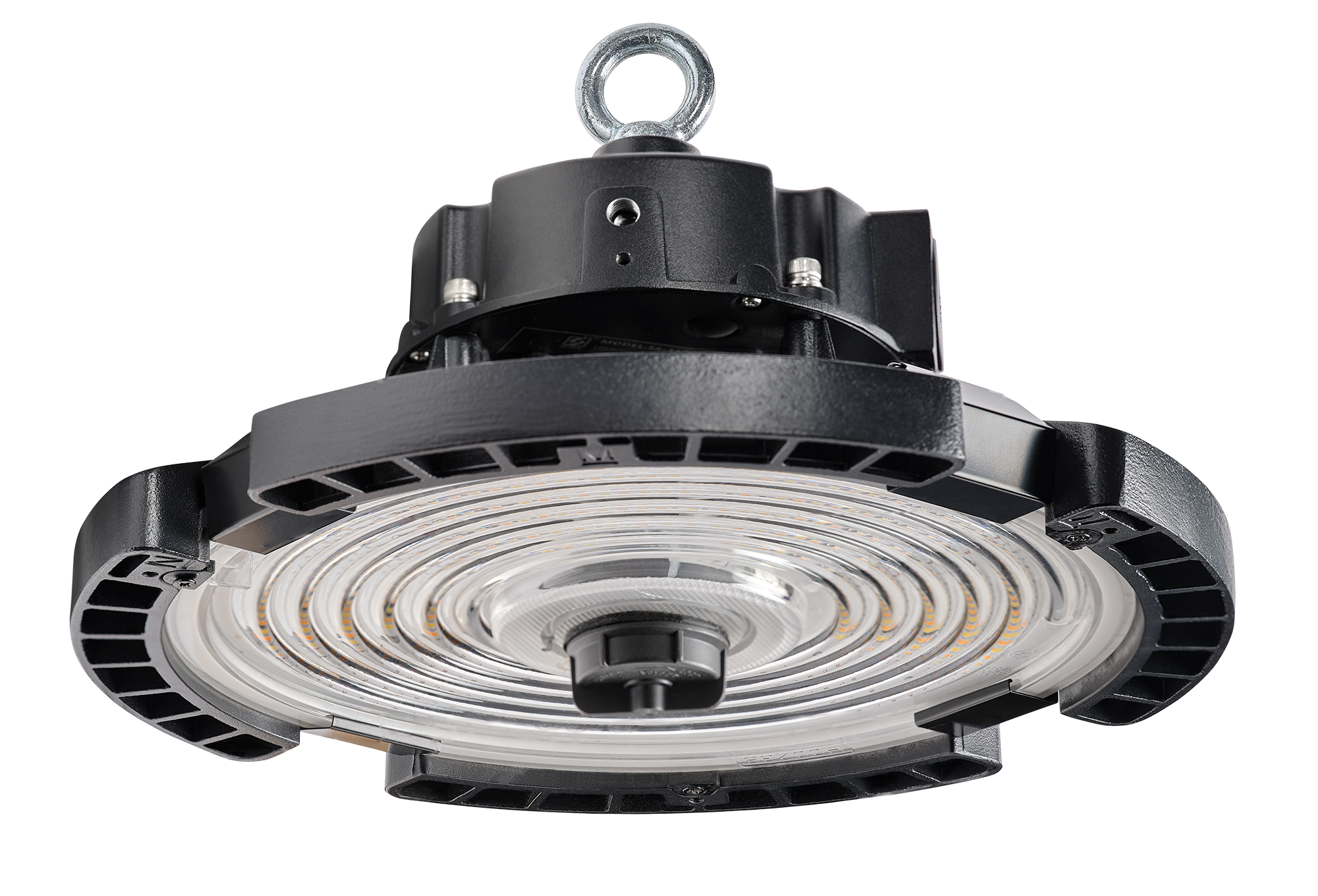

Illumina Versa 60/80/100W LED CCT High Bay - Beam Angle Selectable with Zhaga Receptacle
Code:
70420
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
The Illumina Versa is a complete, all-in-one high bay lighting solution. It features selectable wattage, colour temperature, and beam angle, along with a Zhaga receptacle for added flexibility and future-ready connectivity.
Specification
| Country Of Origin | CN |
| UNSPSC Code | 39111538 |
| Commodity Code | 9405423990 |
| EAN | 5063695004673 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | Warehouse Lighting |
| Warranty | 8 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Lumens per Watt (lm/W) | 149-163 - at 120° |
| Life Hours | 70000 |
| Beam Angle | 60° / 90° / 120° |
| CRI (Ra) | 80 |
| Switching Cycles | 100,000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 67mA |
| Energy Consumption (kWh/1000h) | 100 |
| IP Rating | IP65 |
| Height (mm) | 174 |
| Diameter (mm) | 251 |
| Operating Temperature | -20°C - +35°C |
| Individual Product Weight (kg) | 1.94 |
| Wattage (W) | 60/80/100 |
| Colour Temperature (K) | 3000/4000/5000 |
| IK Rating | IK08 |
| Lumen output (lm) | 60W = 8967 (3000K) / 9801 (4000K) / 9369 (5000K) - 80W = 11830 (3000K) / 13052 (4000K) / 12387 (5000K) - 100W = 13409 (3000K) / 15756 (4000K) / 14180 (5000K) - at 120° |
| Lumen Maintenance Ratio | L80 B10 |
| UNSPSC Code | 39111538 |
| Height (mm) | 174 |
| Diameter (mm) | 251 |
| Individual Product Weight (kg) | 1.94 |
| Single Box Weight (kg) | 2.31 |
| Single box Height (mm) | 270 |
| Single box Width (mm) | 270 |
| Single Box Depth (mm) | 185 |
| Single Box Volume | 0.0134865 |
| Minimum Order Quantity | 1 |
