Illumina Versa

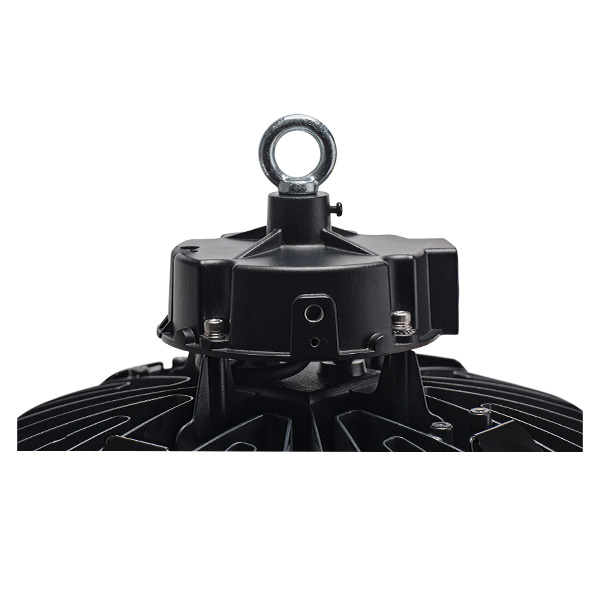

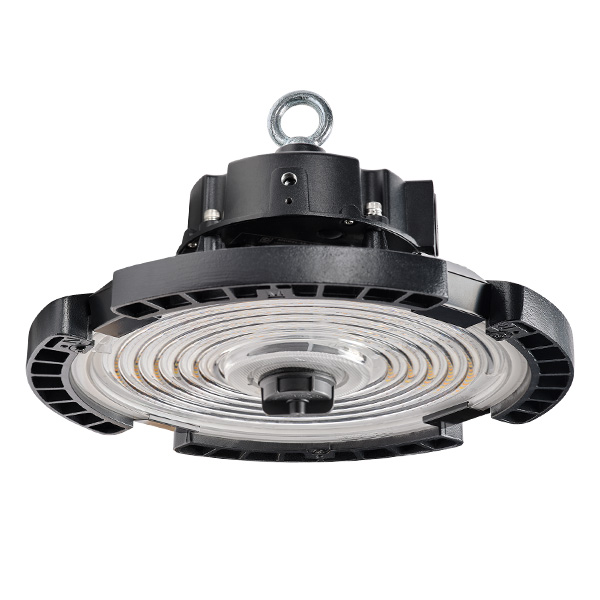

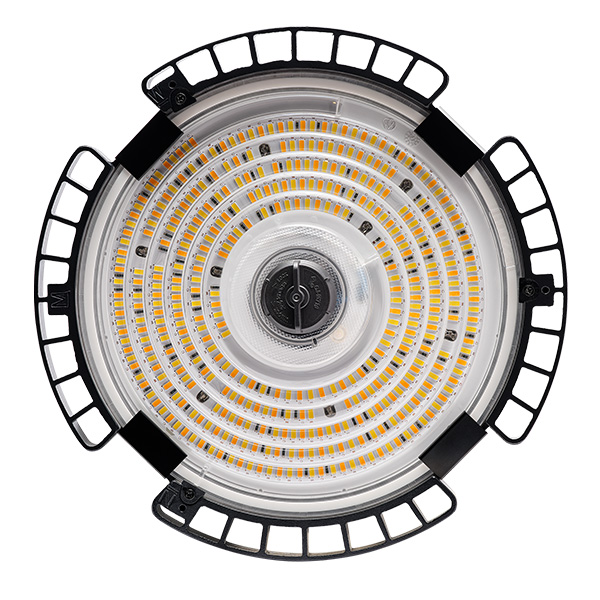

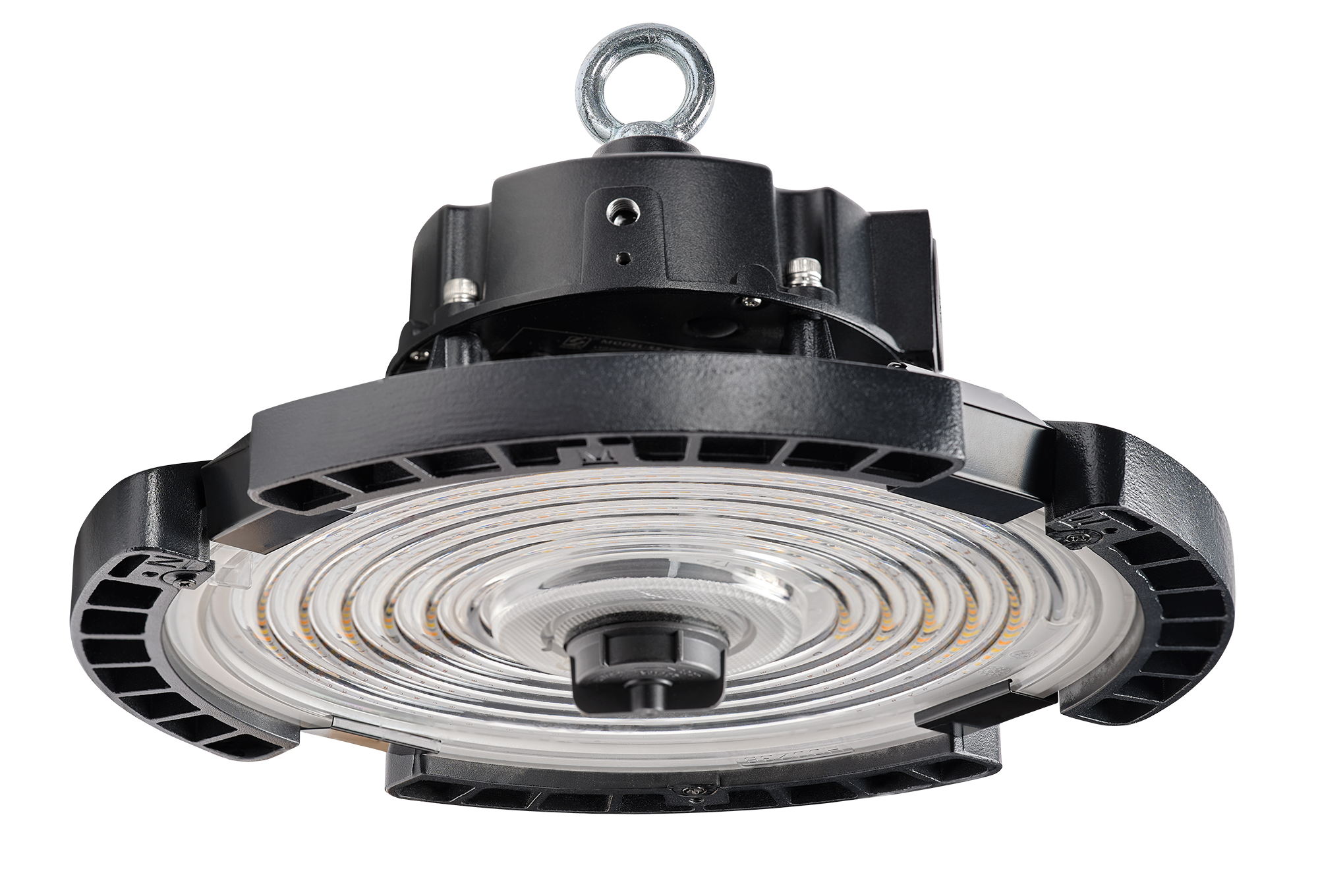

Illumina Versa 120/160/200W LED CCT High Bay - Beam Angle Selectable with Zhaga Receptacle
Code:
70422
The Illumina Versa is a complete, all-in-one high bay lighting solution. It features selectable wattage, colour temperature, and beam angle, along with a Zhaga receptacle for added flexibility and future-ready connectivity.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Country Of Origin | CN |
| UNSPSC Code | 39111538 |
| Commodity Code | 9405423990 |
| EAN | 5063695004703 |
| Product Category | LED Luminaires - Not Plastic |
| Product Application | Warehouse Lighting |
| Warranty | 8 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Lumens per Watt (lm/W) | 153-169 - at 120° |
| Life Hours | 70000 |
| Beam Angle | 60° / 90° / 120° |
| CRI (Ra) | 80 |
| Switching Cycles | 100,000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 68mA |
| Energy Consumption (kWh/1000h) | 200 |
| IP Rating | IP65 |
| Operating Temperature | -20°C - +35°C |
| Wattage (W) | 120/160/200 |
| Colour Temperature (K) | 3000/4000/5000 |
| IK Rating | IK08 |
| Lumen output (lm) | 120W = 18300 (3000K) / 20332 (4000K) / 19173 (5000K) - 160W = 24093 (3000K) / 26999 (4000K) / 25190 (5000K) - 200W = 27077 (3000K) / 31723 (4000K) / 28092 (5000K) - at 120° |
| Lumen Maintenance Ratio | L80 B10 |
| UNSPSC Code | 39111538 |
| Height (mm) | 150 |
| Diameter (mm) | 300 |
| Individual Product Weight (kg) | 2.4206 |
| Single Box Weight (kg) | 3.0566 |
| Single box Height (mm) | 210 |
| Single box Width (mm) | 325 |
| Single Box Depth (mm) | 330 |
| Single Box Volume | 0.0225225 |
| Minimum Order Quantity | 1 |
