Illumina Atlas

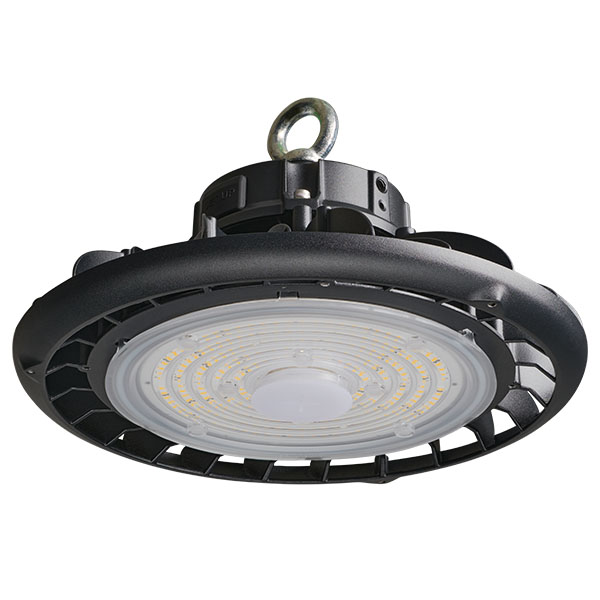

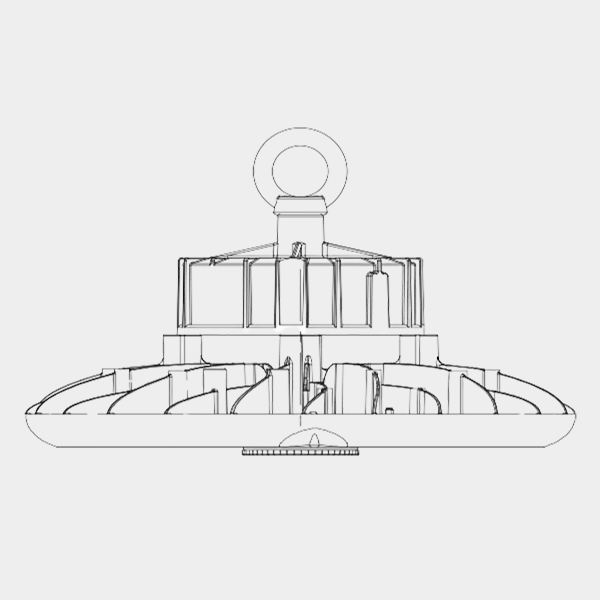

Illumina Atlas 90/120/150W LED High Bay - 90° Lens - 4000K
Code:
11453
The Illumina Atlas Switchable Wattage High Bay is a highly efficient versatile LED luminaire, ideally suited to a wide range of industrial applications for both new installations and retrofit applications.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423990 |
| EAN | 5013588114538 |
| Country Of Origin | CN |
| UNSPSC Code | 39111546 |
| Product Application | Commercial / Industrial / Warehousing |
| Product Category | LED Luminaires - Not Plastic |
| Warranty | 7 Years (2 Years On Site) |
| Volts (V) | 220/240 |
| Life Hours | 70000 |
| Beam Angle | 90° |
| CRI (Ra) | 80 |
| Switching Cycles | 100000 |
| Frequency (Hz) | 50/60 |
| Energy Consumption (kWh/1000h) | 150 |
| IP Rating | IP65 |
| Lumens per Watt (lm/W) | 155-170 |
| Operating Temperature | -30°C - +50°C |
| LED Drive Current | 120mA |
| Wattage (W) | 90/120/150 |
| Equivalent Wattage (W) | 400 |
| Colour Temperature (K) | 4000 |
| IK Rating | IK10 |
| Lumen output (lm) | 15318 (90W) / 19422 (120W) / 23213 (150W) |
| Height (mm) | 161 |
| Diameter (mm) | 285 |
| UNSPSC Code | 39111546 |
| Individual Product Weight (kg) | 2 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 2.6 |
| Single box Height (mm) | 290 |
| Single box Width (mm) | 290 |
| Single Box Depth (mm) | 174 |
| Single Box Volume | 0.0146334 |
Optional Accessories
Code
Product Name
Unit Price
Quantity
Price
Code
11463
Product Name
Twist Microwave Sensor for the Illumina Atlas Wattage Switchable LED High Bay
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
Code
11464
Product Name

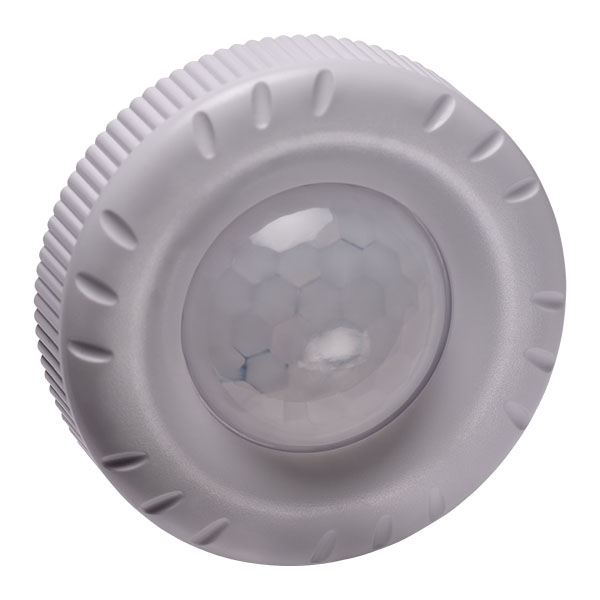

Twist PIR Sensor for the Illumina Atlas Wattage Switchable LED High Bay
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
Code
11465
Product Name
Casambi Bluetooth Wireless Node for the Illumina Atlas Wattage Switchable LED High Bay
Unit Price
£0.00
Price
£0.00
Quantity
Login to see pricing
