Arial Ascent

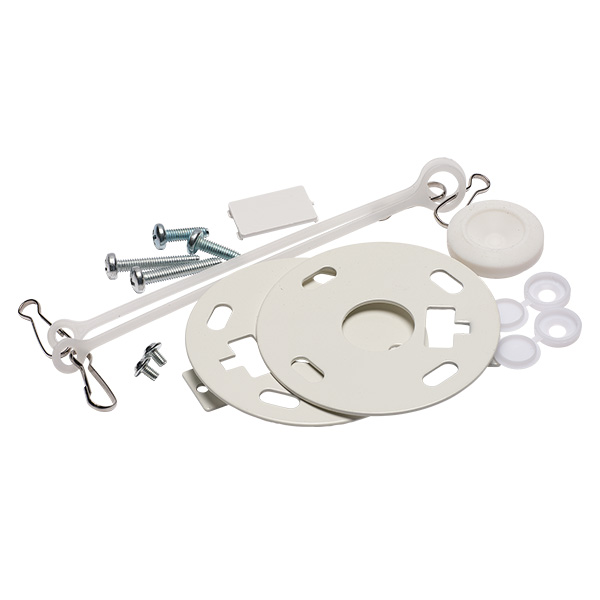

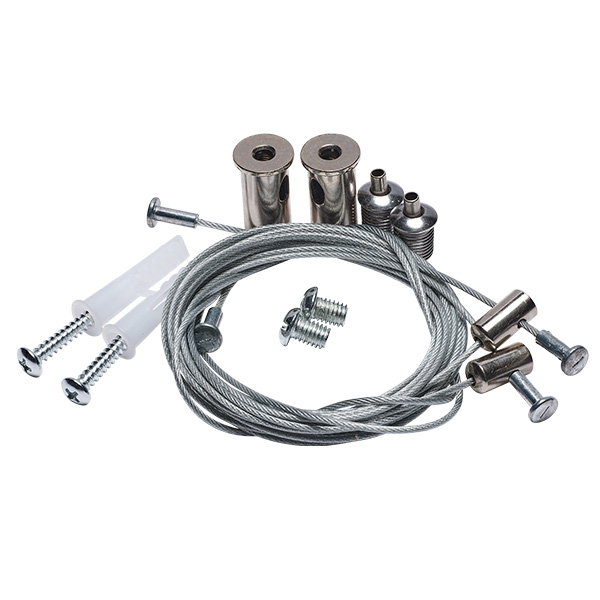

Arial Ascent 22/40W CCT 5ft Linear in Emergency - 75% Down 25% Up - Includes 1.5m Suspension Kit & Surface Mount Kit
Code:
70107
The Arial Ascent is a linear fitting designed for various applications.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423100 |
| EAN | 5013588701073 |
| Country Of Origin | CN |
| Product Category | LED Luminaires - Plastic |
| Product Application | General Offices, Commercial Spaces & Open Areas |
| UNSPSC Code | 39111545 |
| Warranty | 7 Years |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 90° |
| CRI (Ra) | 85 |
| Switching Cycles | 50000 |
| Frequency (Hz) | 50/60 |
| LED Drive Current | 350mA |
| Energy Consumption (kWh/1000h) | 40 |
| IP Rating | IP20 |
| Operating Temperature | -5°C to + 45°C |
| Lumens per Watt (lm/W) | 115-120 |

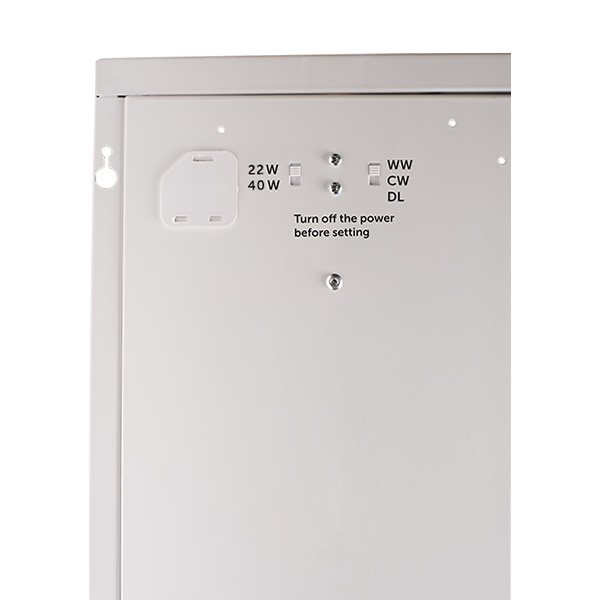

| Wattage (W) | 22/40 |
| Lumen Maintenance Ratio | 80 |
| Colour Temperature (K) | 3000/4000/6000 |
| Lumen output (lm) | 22W = 2536 (3000K) / 2642 (4000K) / 2599 (6000K) - 40W = 4607 (3000K) / 4755 (4000K) / 4646 (6000K) |

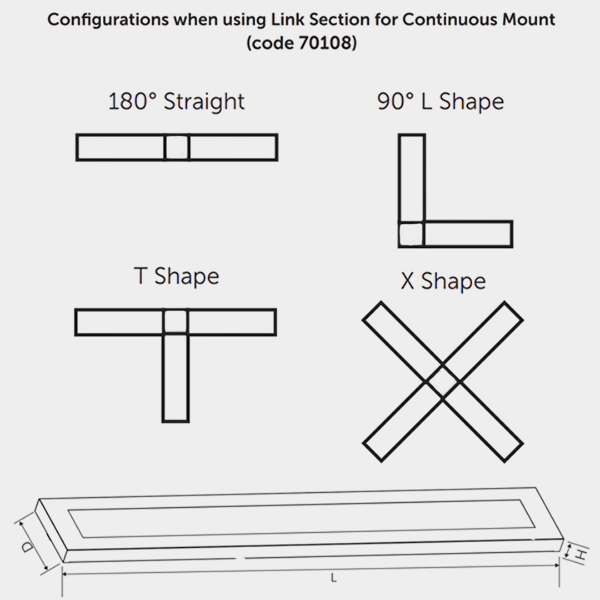

| Height (mm) | 37 |
| Length (mm) | 1574 |
| Individual Product Weight (kg) | 5 |
| Outer Box Weight (kg) | 12 |
| Outer Box Height (mm) | 1645 |
| Outer Box Width (mm) | 240 |
| Outer Box Depth (mm) | 260 |
| Outer Box Qty | 2 |
| Outer Box Volume | 0.102648 |
| Depth (mm) | 186 |
| Minimum Order Quantity | 1 |
| Single Box Weight (kg) | 5.5 |
| Single box Height (mm) | 1610 |
| Single box Width (mm) | 230 |
| Single Box Depth (mm) | 65 |
| Single Box Volume | 0.0240695 |
| Inner Box Barcode | 7010700000001 |
| Outer Box Barcode | 7010700000002 |
| UNSPSC Code | 39111545 |
