Arial Ascent

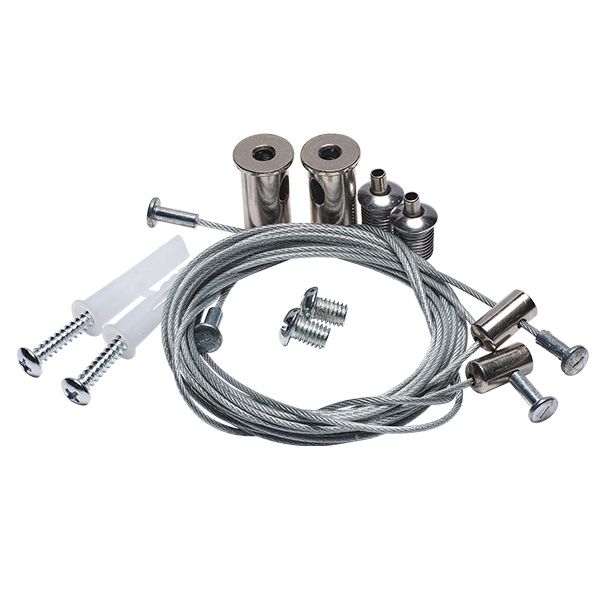

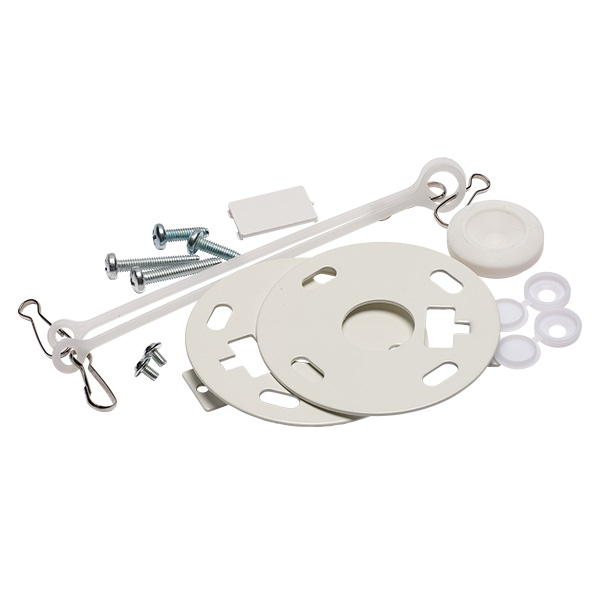

Arial Ascent 40W CCT 5ft Linear in Emergency - 75% Down 25% Up - Includes 1.5m Suspension Kit & Surface Mount Kit - DALI Dimmable
Code:
70116
The Arial Ascent is a linear fitting designed for various applications.
To view product pricing and place orders, please log in to your account.
To view product pricing and place orders, please log in to your account.
Specification
| Commodity Code | 9405423100 |
| EAN | 5013588003740 |
| Country Of Origin | CN |
| Product Category | LED Luminaires - Plastic |
| Product Application | General Offices, Commercial Spaces & Open Areas |
| UNSPSC Code | 39111545 |
| Warranty | 7 Years |
| Volts (V) | 220/240 |
| Life Hours | 50000 |
| Beam Angle | 90° |
| CRI (Ra) | 85 |
| Switching Cycles | 50000 |
| Frequency (Hz) | 50/60 |
| Energy Consumption (kWh/1000h) | 40 |
| IP Rating | IP20 |
| Lumens per Watt (lm/W) | 115-120 |
| Operating Temperature | -5°C to + 45°C |
| Wattage (W) | 40 |
| Colour Temperature (K) | 3000/4000/6000 |
| Lumen output (lm) | 4607 (3000K) / 4755 (4000K) / 4646 (6000K) |
| Individual Product Weight (kg) | 5 |
| Height (mm) | 37 |
| Length (mm) | 1574 |
| Depth (mm) | 186 |
| Single Box Weight (kg) | 5.5 |
| Single box Height (mm) | 1610 |
| Single box Width (mm) | 230 |
| Single Box Depth (mm) | 65 |
| Single Box Volume | 0.0240695 |
| UNSPSC Code | 39111545 |
| Minimum Order Quantity | 1 |
