Arial Pro IP65

Arial Pro 12/16W IP65 LED CCT Downlight

Code
10954
Next Delivery
29/08/2025 - 300 items
Technical Specification
Volts (V)
220/240
Colour Temp (K)
3000/4000/6000
Watts (W)
12/16
Lumens (lm)
12W = 1533 (3000K) / 1704 (4000K) / 1526 (6000K) - 16W = 2044 (3000K) / 2272 (4000K) / 2035 (6000K)
The Arial Pro LED Downlight is a sleek looking luminaire designed to replace cumbersome CFL fittings. With a 7 year guarantee across both the IP44 & IP65 range, the Arial Pro can be installed in a variety of applications with the confidence of knowing this product will stand the test of time.
Download Specification
Full Specification
Downloads
Name
Arial Pro 12/16W IP65 LED CCT Downlight
Volts (V)
220/240
Colour Temp (K)
3000/4000/6000
Life Hours
50000
Beam Angle
90°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
400mA
Energy Consumption (kWh/1000h)
16
IP Rating
IP65
Downlight Cut Out (mm)
160
Commodity Code
9405423100
EAN
5013588109541
Country Of Origin
CN
UNSPSC Code
39111515
Individual Volume
0.00504
Outer Box Qty
12
Height (mm)
102
Diameter (mm)
190
Outer Box Height (mm)
400
Outer Box Width (mm)
415
Outer Box Depth (mm)
415
Single Carton Weight (KG)
0.55
Single Carton Height (mm)
126
Single Carton Width (mm)
200
Single Carton Depth (mm)
200
Individual Product Weight (kg)
0.4
Outer Box Weight (kg)
10
Outer Box Volume
0.06889
Product Category
LED Luminaires - Plastic
Outer Carton Barcode
1095400000012
Product Application
LED Downlight
Minimum Order Quantity
1
Single Box Packaging Weight (kg)
0.15
Operating Temperature
-5°C - +35°C
Lumens Maintenance Ratio
L80 B10
Watts (W)
12/16
Lumens (lm)
12W = 1533 (3000K) / 1704 (4000K) / 1526 (6000K) - 16W = 2044 (3000K) / 2272 (4000K) / 2035 (6000K)
Lumens per Watt (lm/W)
127-142
Catalogue Page

Instructions

Photometric Data

Product Image

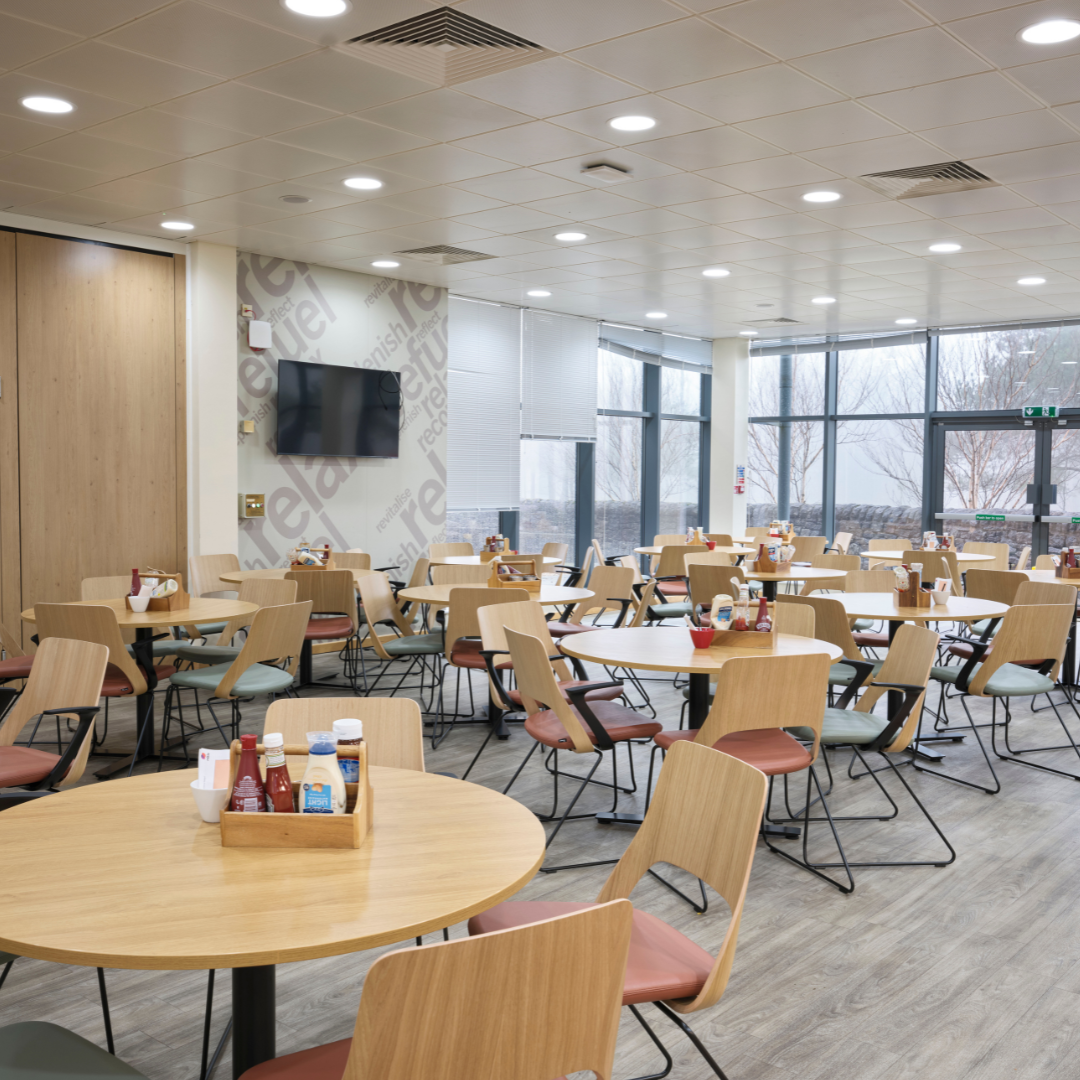

Case Study Image
