Arial Pro IP65

Arial Pro 6/8/10W IP65 LED CCT Downlight

Code
10953
Next Delivery
29/08/2025 - 300 items
Technical Specification
Volts (V)
220/240
Colour Temp (K)
3000/4000/6000
Watts (W)
6/8/10
Lumens (lm)
6W = 725 (3000K) / 785 (4000K) / 746 (6000K) - 8W = 967 (3000K) / 1047 (4000K) / 994 (6000K) - 10W = 1209 (3000K) / 1309 (4000K) / 1243 (6000K)
10W Arial Pro Downlight IP65 - CCT
Download Specification
Full Specification
Downloads
Name
Arial Pro 6/8/10W IP65 LED CCT Downlight
Volts (V)
220/240
Colour Temp (K)
3000/4000/6000
Life Hours
50000
Beam Angle
90°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
230mA
Energy Consumption (kWh/1000h)
10
IP Rating
IP65
Downlight Cut Out (mm)
90
Commodity Code
9405423100
EAN
5013588109534
Country Of Origin
CN
UNSPSC Code
39111515
Individual Volume
0.00207
Outer Box Qty
30
Height (mm)
71
Diameter (mm)
115
Outer Box Width (mm)
285
Outer Box Depth (mm)
525
Single Carton Weight (KG)
0.275
Single Carton Height (mm)
90
Single Carton Width (mm)
135
Single Carton Depth (mm)
170
Individual Product Weight (kg)
0.195
Outer Box Weight (kg)
9.5
Outer Box Height (mm)
475
Outer Box Volume
0.07107
Product Category
LED Luminaires - Plastic
Outer Carton Barcode
1095300000030
Product Application
LED Downlight
Minimum Order Quantity
1
Single Box Packaging Weight (kg)
0.08
Operating Temperature
-5°C - +35°C
Lumens Maintenance Ratio
L80 B10
Watts (W)
6/8/10
Lumens (lm)
6W = 725 (3000K) / 785 (4000K) / 746 (6000K) - 8W = 967 (3000K) / 1047 (4000K) / 994 (6000K) - 10W = 1209 (3000K) / 1309 (4000K) / 1243 (6000K)
Lumens per Watt (lm/W)
121-131
Catalogue Page

Instructions

Photometric Data

Product Image

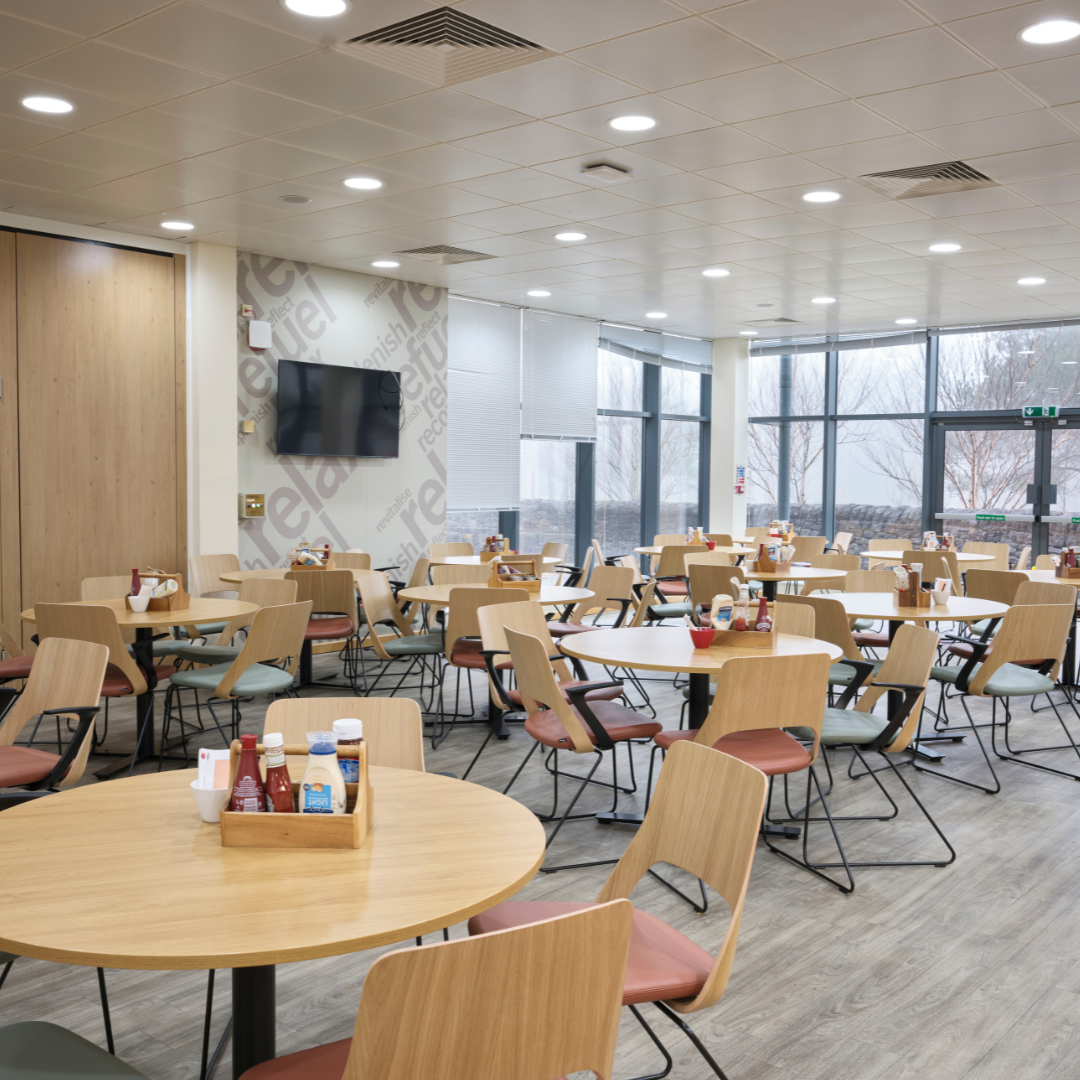

Case Study Image
