Arial Pro IP44

Arial Pro 16W IP44 LED CCT Downlight with 1-10V Dimming

Code
10960
Technical Specification
Volts (V)
220/240
The Arial Pro LED Downlight is a sleek looking luminaire designed to replace cumbersome CFL fittings. With a 7 year guarantee across both the IP44 & IP65 range, the Arial Pro can be installed in a variety of applications with the confidence of knowing this product will stand the test of time.
Download Specification
Full Specification
Downloads
Name
Arial Pro 16W IP44 LED CCT Downlight with 1-10V Dimming
Volts (V)
220/240
Life Hours
50000
Beam Angle
90°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
400mA
Energy Consumption (kWh/1000h)
16
IP Rating
IP44
Commodity Code
9405423100
EAN
5013588109602
Height (mm)
102
Diameter (mm)
190
Outer Box Height (mm)
400
Outer Box Width (mm)
415
Outer Box Depth (mm)
415
Outer Box Weight (kg)
10
Outer Box Volume
0.06889
Outer Box Qty
12
Individual Product Weight (kg)
0.4
Electric Class
Class II
Power Factor
>0.9
Dimming Option
1-10V
Operating Temperature
-5°C - +35°C
Lumens per Watt (lm/W)
127-142
Wattage (W)
16
Equivalent Wattage (W)
80
Colour Temperature (K)
3000/4000/6000
Minimum Order Quantity
1
Single Box Weight (kg)
0.55
Single box Height (mm)
126
Single box Width (mm)
200
Single Box Depth (mm)
200
Single Box Volume
0.00504
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
Downlights
EDATA Product Range
Arialpro
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
2044 (3000K) / 2272 (4000K) / 2035 (6000K)
Dimmable
Yes
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Catalogue Page

Instructions

Product Image

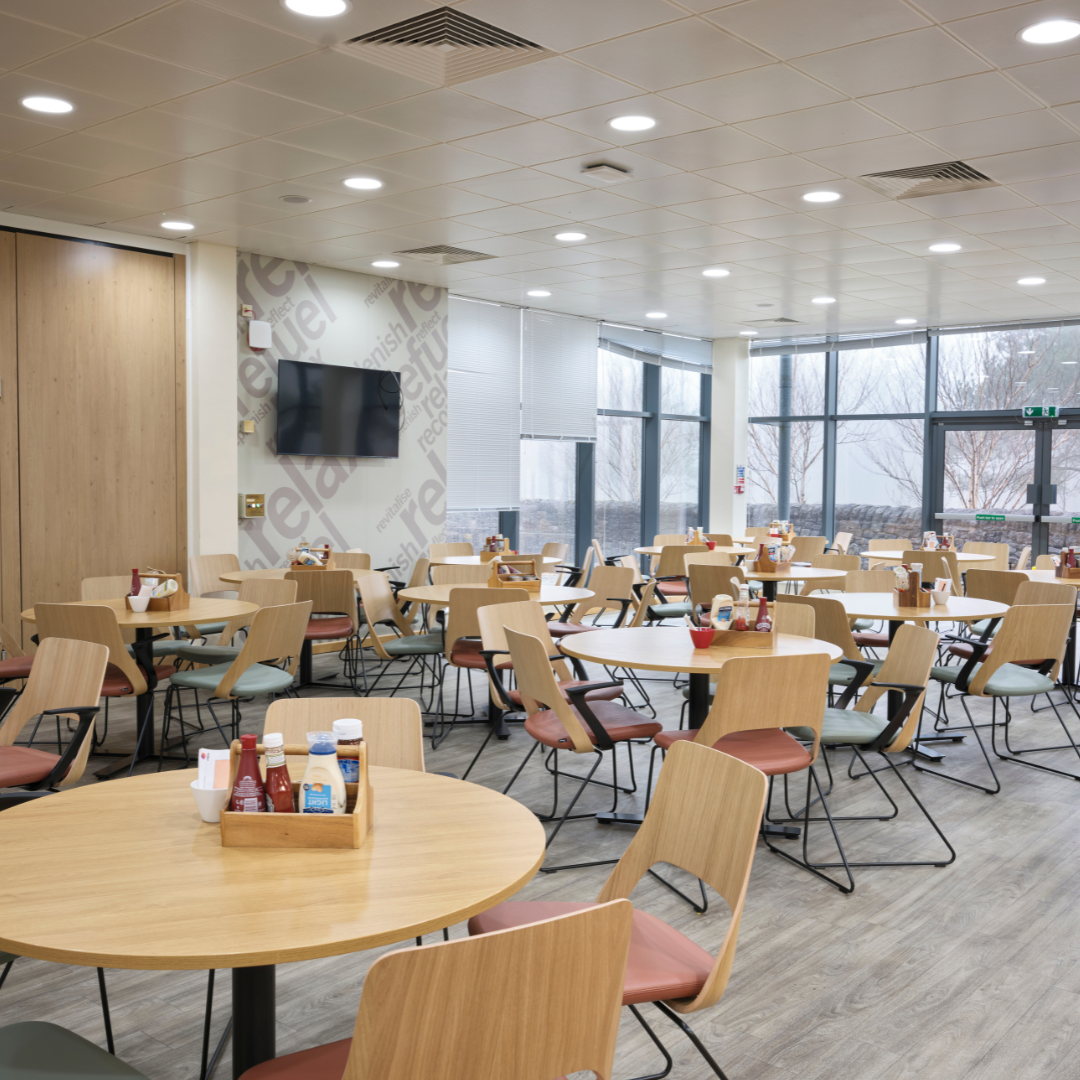

Case Study Image
