Skyline Slim+ Standard

Skyline Slim+ 100W LED Floodlight - 4000K

Code
10990
Technical Specification
Volts (V)
240
100W Skyline Slim LED Floodlight - IP65, 4000K
Download Specification
Full Specification
Downloads
Name
Skyline Slim+ 100W LED Floodlight - 4000K
Volts (V)
240
Life Hours
50000
Beam Angle
110°
CRI (Ra)
80
Guarantee
5 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
930mA
Energy Consumption (kWh/1000h)
100
IP Rating
IP65
Commodity Code
9405423990
EAN
5013588109909
Outer Box Qty
4
Height (mm)
318
Width (mm)
276
Depth (mm)
60
Outer Box Height (mm)
292
Outer Box Width (mm)
284
Outer Box Depth (mm)
329
Individual Product Weight (kg)
3.096
Outer Box Weight (kg)
13.6759
Outer Box Volume
0.02728
Lumens per Watt (lm/W)
175
Flex
1m
Windage
0.062m²
Power Factor
>0.9
Operating Temperature
-30°C to +35°C
Wattage (W)
100
Equivalent Wattage (W)
150
Colour Temperature (K)
4000
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
3.28437
Single box Height (mm)
280
Single box Width (mm)
70
Single Box Depth (mm)
323
Single Box Volume
0.00633
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Floodlights
EDATA Product Range
Skyline Slim+
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
17514
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Catalogue Page

Instructions

Photometric Data

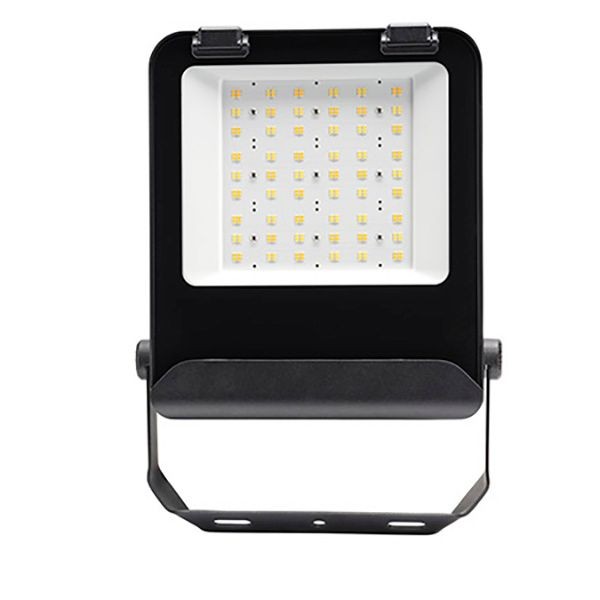

Product Image

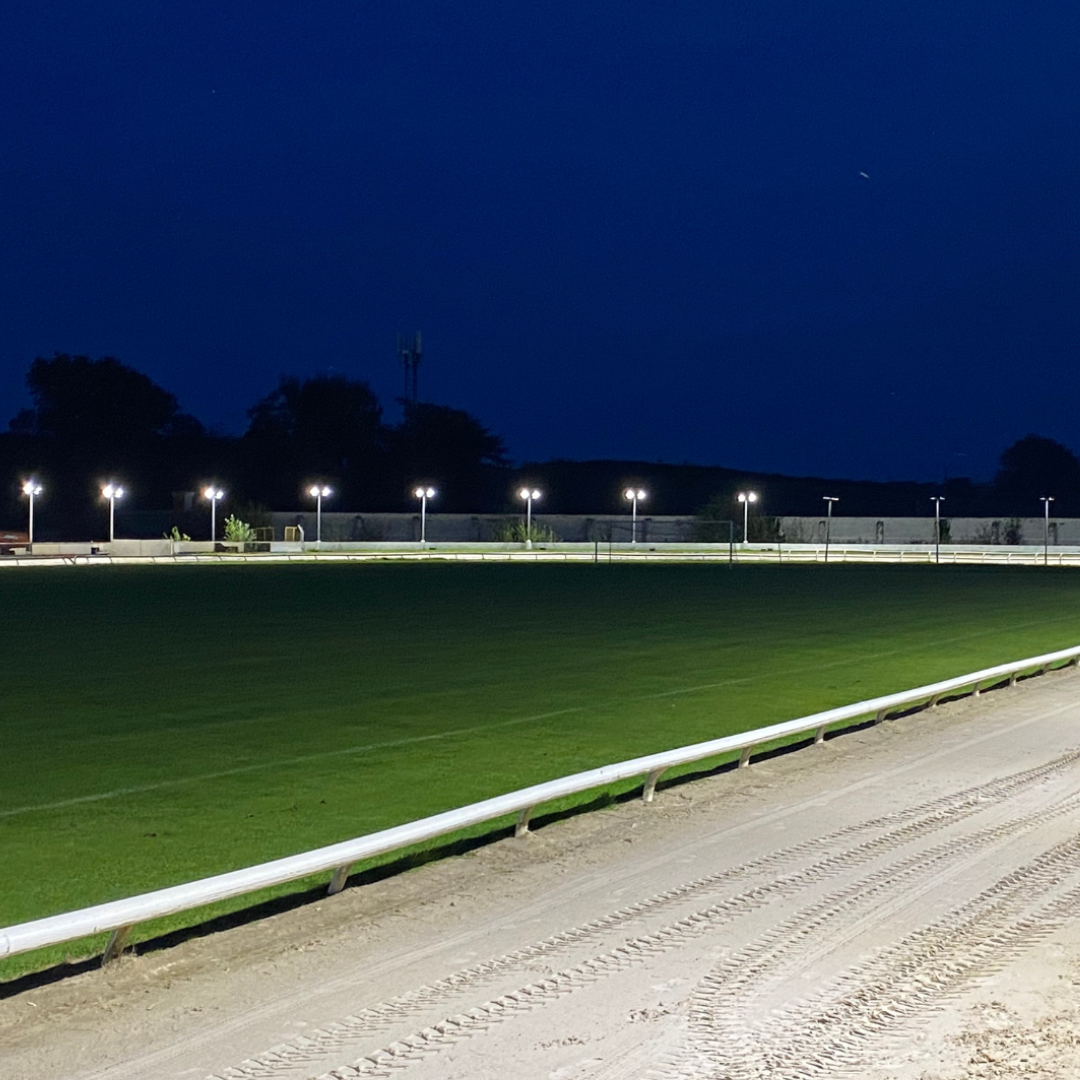

Case Study Image
