Dura Double

Dura 52W LED Anti-Corrosive 5ft Double Batten in Emergency - 4000K

Code
06717
Next Delivery
16/12/2024 - 300 items
Technical Specification
Volts (V)
220/240
Watts (W)
52
Colour Temp (K)
4000
Lumens (lm)
8448
Energy Rating
E

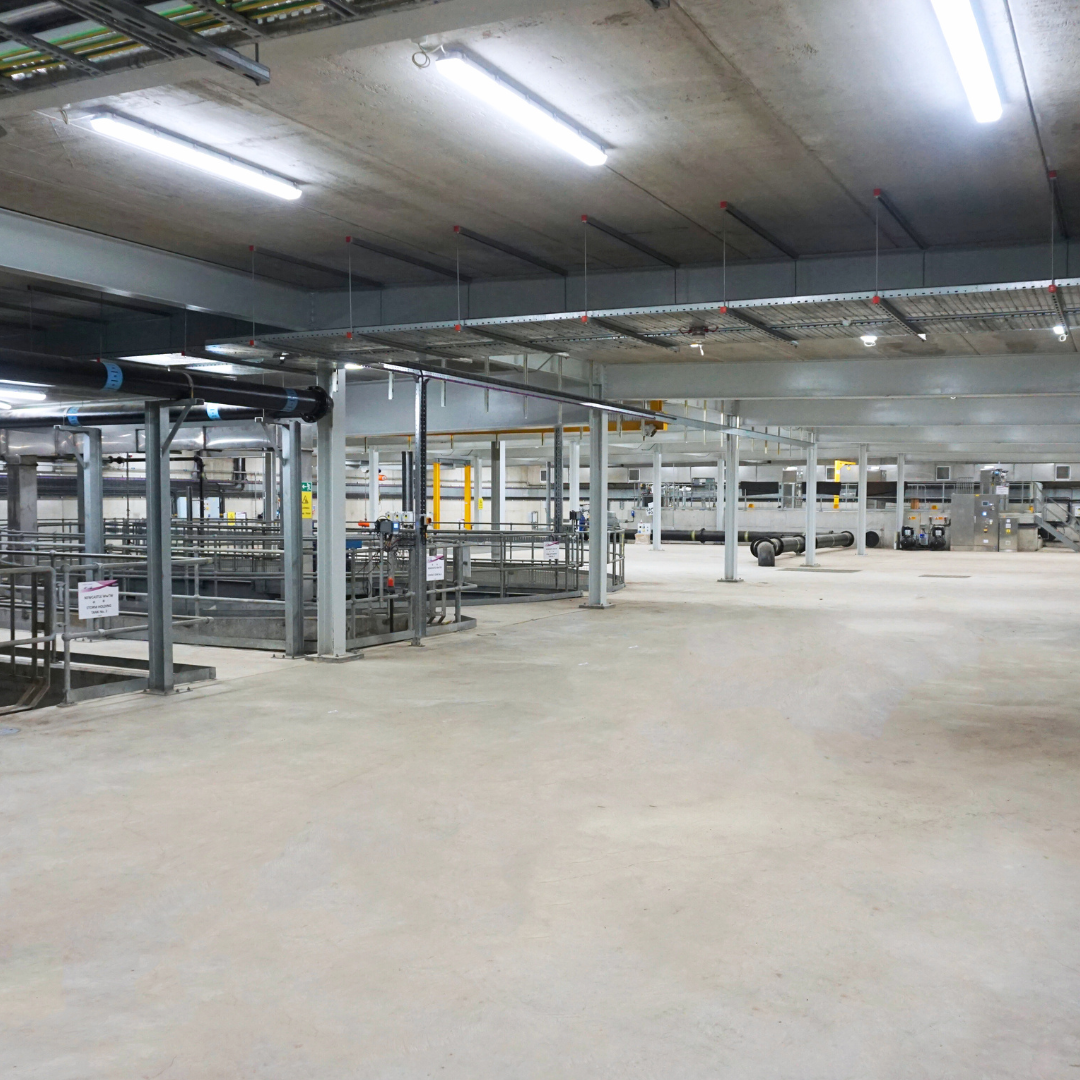

The Dura LED Anti Corrosive Batten is one of BELL’s flagship Luminaires. This fully enclosed luminaire comes with stainless steel diffuser clips, ideal for exterior lighting projects that are open to the elements.
Download Specification
Full Specification
Downloads
Name
Dura 52W LED Anti-Corrosive 5ft Double Batten in Emergency - 4000K
Volts (V)
220/240
Watts (W)
52
Colour Temp (K)
4000
Lumens (lm)
8448
Life Hours
50000
Beam Angle
128°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
1080mA
Energy Consumption (kWh/1000h)
52
IP Rating
IP66
Commodity Code
9405409990
EAN
5013588067179
Country Of Origin
CN
UNSPSC Code
39111544
Individual Volume
0.02007
Outer Box Qty
4
Height (mm)
90
Width (mm)
125
Length (mm)
1530
Outer Box Height (mm)
215
Outer Box Width (mm)
310
Outer Box Depth (mm)
1590
Candelas (cd)
1950
Equivalent Watts (W)
116
Single Carton Height (mm)
95
Single Carton Width (mm)
135
Single Carton Depth (mm)
1565
Outer Box Volume
0.10597
Individual Product Weight (kg)
2.89
Single Carton Weight (KG)
3.21
Plastic Packaging Weight (kg)
0.03
Outer Box Weight (kg)
13.9
Impact Protection
IK10
Energy Rating
E
Lumens per Watt (lm/W)
163
Inner Box Qty
1
Electric Class
1
Power Factor
0.97kW
Driver Integral?
Yes
Emergency Lumen Output (lm)
406
